AOM033V120X2Q

$17.48

Description：1200V SILICON CARBIDE MOSFET
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tube

SKU:dcde87734442 Category: Single FETs, MOSFETs Brand: Alpha & Omega Semiconductor Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AOM033V120X2Q is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Alpha & Omega Semiconductor Inc.. Its product description is 1200V SILICON CARBIDE MOSFET. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for AOM033V120X2Q

Description：1200V SILICON CARBIDE MOSFET
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tube
FET Type：N-Channel
Technology：SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)：1200 V
Current - Continuous Drain (Id) @ 25°C：68A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：15V
Rds On (Max) @ Id, Vgs：43mOhm @ 20A, 15V
Vgs(th) (Max) @ Id：2.8V @ 17.5mA
Gate Charge (Qg) (Max) @ Vgs：104 nC @ 15 V
Vgs (Max)：+18V, -8V
Input Capacitance (Ciss) (Max) @ Vds：2908 pF @ 800 V
FET Feature：-
Power Dissipation (Max)：300W (Tj)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：Automotive
Qualification：AEC-Q101
Mounting Type：Through Hole

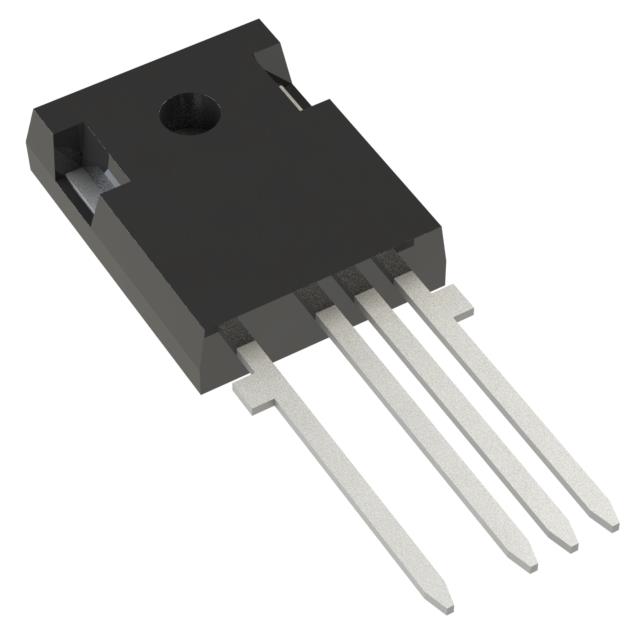

Supplier Device Package：TO-247-4L
Package / Case：TO-247-4

Single FETs, MOSFETs datasheet and documents for AOM033V120X2Q

AOM033V120X2Q

Single FETs, MOSFETs Overview

The AOM033V120X2Q is a 1200 V αSiC Silicon Carbide Power MOSFET from Alpha & Omega Semiconductor. It features a typical RDS(ON) of 33 mΩ at 15 V gate drive and supports a pulsed drain current (IDM) of 120 A. The device utilizes an optimized TO-247-4L package with a Kelvin source pin to minimize parasitic inductance, enabling high-frequency switching. It is qualified under the AEC-Q101 automotive standard and operates within a junction temperature range of -55°C to 175°C.

Single FETs, MOSFETs Feature Summary

AEC-Q101 Automotive Qualified
Optimized Gate Drive Voltage (VGS = 15 V)
Low Reverse Recovery Diode (Qrr)
Fast Switching with Low RG and Low Capacitance

Single FETs, MOSFETs Applications

xEV Charger
Electric Vehicle Supply Equipment (EVSE)
Motor Drives
Automotive Inverters

Single FETs, MOSFETs Procurement Notes

Verify component authenticity through authorized distribution channels or direct manufacturer engagement. Confirm that the specific order matches the AOM033V120X2Q designation and TO-247-4L form factor. Ensure compliance with applicable export control regulations and legal requirements prior to procurement.

Single FETs, MOSFETs Selection Notes

Select this component for designs requiring high-voltage silicon carbide performance with automotive reliability standards. The 15 V gate drive voltage ensures compatibility with standard drivers. The four-terminal TO-247-4L package is suitable for applications demanding low parasitic inductance and efficient thermal management up to 175°C.

Single FETs, MOSFETs Part Context

This part belongs to the αSiC MOSFET product line from Alpha & Omega Semiconductor. It represents a silicon carbide power switch designed to replace traditional silicon devices in high-efficiency power conversion systems. The TO-247-4L packaging provides a standardized footprint for high-power thermal dissipation.
