AON6152 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Alpha & Omega Semiconductor Inc.. Its product description is MOSFET N-CHANNEL 45V 100A 8DFN. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for AON6152
- Description：MOSFET N-CHANNEL 45V 100A 8DFN
- Series：-
- Mfr：Alpha & Omega Semiconductor Inc.
- Package：Tape & Reel (TR)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：45 V
- Current - Continuous Drain (Id) @ 25°C：100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
- Rds On (Max) @ Id, Vgs：1.15mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id：2.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：125 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：8900 pF @ 22.5 V
- FET Feature：-
- Power Dissipation (Max)：208W (Tc)
- Operating Temperature：-55°C ~ 150°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount

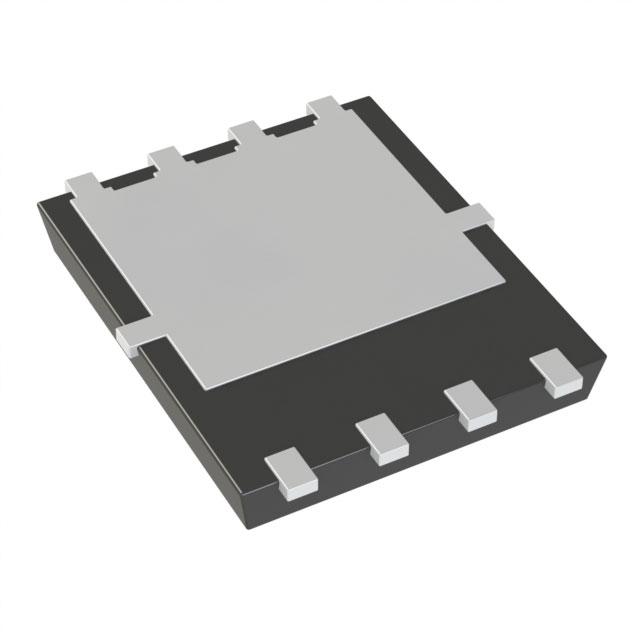

- Supplier Device Package：8-DFN (5x6)
- Package / Case：8-PowerSMD, Flat Leads
Single FETs, MOSFETs datasheet and documents for AON6152
Single FETs, MOSFETs Overview
The AON6152 is a 45V N-Channel MOSFET utilizing AlphaSGT technology, manufactured by Alpha & Omega Semiconductor Inc. It features a maximum drain-source voltage (Vdss) of 45V and a continuous drain current (Id) rated at 25°C. The device is designed for surface-mount applications, offering low on-resistance characteristics suitable for power management solutions in consumer electronics, computing, and industrial systems.
Single FETs, MOSFETs Feature Summary
- AlphaSGT trench gate technology for enhanced performance
- N-channel configuration with logic-level gate drive capability
- Surface-mount package design for automated assembly
Single FETs, MOSFETs Applications
- Consumer electronics power management
- Computing system power distribution
- Industrial control circuit protection
Single FETs, MOSFETs Procurement Notes
Verify the specific datasheet revision and manufacturing lot details directly with Alpha & Omega Semiconductor Inc. or authorized distributors. Confirm that the component meets all required electrical specifications for the target application before integration. Ensure compliance with relevant environmental regulations such as REACH and RoHS standards applicable to the region of deployment.
Single FETs, MOSFETs Selection Notes
Select the AON6152 when a 45V N-Channel MOSFET with AlphaSGT technology is required. Consider its continuous current rating and thermal dissipation capabilities relative to the load requirements. Evaluate the surface-mount package compatibility with existing PCB footprints and assembly processes to ensure seamless integration into the design.
Single FETs, MOSFETs Part Context
This component belongs to the AlphaSGT family of MOSFETs from Alpha & Omega Semiconductor Inc., a company specializing in power management ICs and discrete semiconductors. The AON6152 is part of a broader portfolio aimed at providing efficient power solutions for various electronic applications, leveraging advanced trench gate technology for improved switching and conduction performance.
Single FETs, MOSFETs Replacement Considerations
Potential substitutes include other 45V N-Channel MOSFETs from the same manufacturer, such as the AO4262E or AON6162, provided they meet the specific voltage, current, and package requirements of the original design.
