Product Detailed Parameters
- Description：MOSFET 2N/2P-CH 30V 8A 12DFN
- Series：-
- Mfr：Alpha & Omega Semiconductor Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：MOSFET (Metal Oxide)
- Configuration：2 N and 2 P-Channel
- FET Feature：-
- Drain to Source Voltage (Vdss)：30V
- Current - Continuous Drain (Id) @ 25°C：8A (Ta), 7A (Ta)
- Rds On (Max) @ Id, Vgs：21mOhm @ 8A, 10V, 27mOhm @ 7A, 10V
- Vgs(th) (Max) @ Id：2.4V @ 250µA, 2.6V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：15nC @ 10V, 24nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds：395pF @ 15V, 730pF @ 15V
- Power - Max：2.6W (Ta)
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Surface Mount

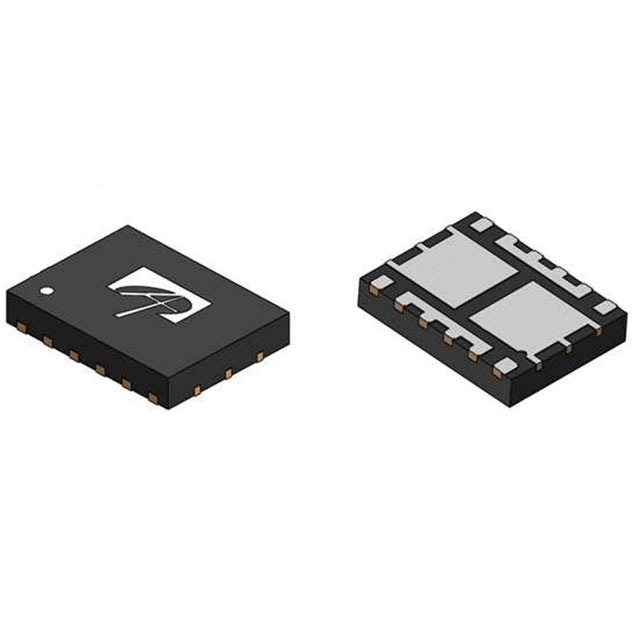

- Package / Case：12-PowerWDFN
- Supplier Device Package：12-DFN-EP (4x3)
- Grade：-
- Qualification：-
Download product information
FAQ
Is the AONL32328 a single or dual MOSFET?
The provided documentation does not specify whether this component is a single or dual configuration.
What is the maximum drain-source voltage for this part?
Specific voltage ratings are not available in the current data set.
