AOTL66518

$6.78

Description：MOSFET N-CH 150V 214A
Series：AlphaSGT™
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:0f7e0d175502 Category: Single FETs, MOSFETs Brand: Alpha & Omega Semiconductor Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AOTL66518 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Alpha & Omega Semiconductor Inc.. Its product description is MOSFET N-CH 150V 214A. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for AOTL66518

Description：MOSFET N-CH 150V 214A
Series：AlphaSGT™
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：150 V
Current - Continuous Drain (Id) @ 25°C：214A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：4.3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id：3.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：115 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：6460 pF @ 75 V
FET Feature：-
Power Dissipation (Max)：500W (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount

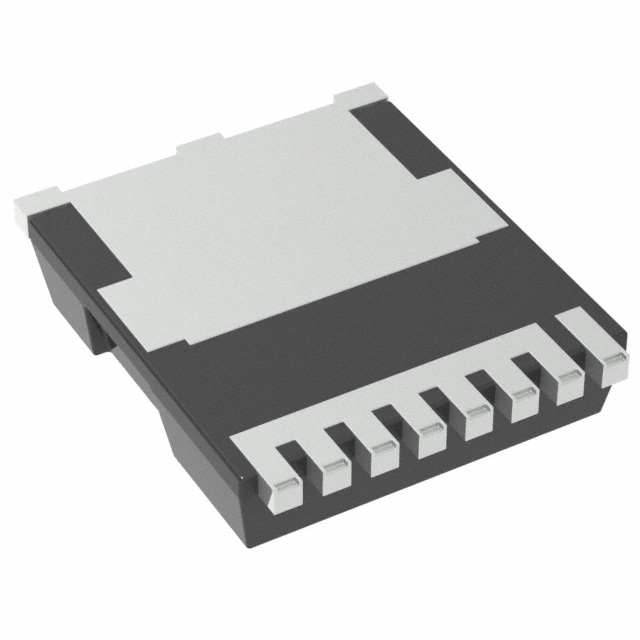

Supplier Device Package：TOLLA
Package / Case：8-PowerSFN

Single FETs, MOSFETs datasheet and documents for AOTL66518

AOTL66518

Single FETs, MOSFETs Overview

The AOTL66518 is a 150V N-Channel Power MOSFET utilizing AlphaSGT™ technology. It features a maximum drain-source voltage of 150V and a continuous drain current of 214A at TC=25°C. The device achieves a low on-resistance of less than 4.3mΩ at VGS=10V and 5.1mΩ at VGS=8V. It supports a pulsed drain current of 710A and operates with a maximum junction temperature of 175°C. Packaged in TOLLA, it offers high thermal performance with a junction-to-case resistance of 0.3°C/W.

Single FETs, MOSFETs Feature Summary

AlphaSGT™ technology provides combined low on-resistance and wide safe operating area.
High inrush current capability enables faster system start-up and reduced downtime.
Robust avalanche performance verified through 100% UIS testing.

Single FETs, MOSFETs Applications

Load switch
Battery Management System (BMS)
Motor drive

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix to confirm package type and reel quantity. Confirm RoHS compliance status for environmental requirements. Ensure the selected component matches the required thermal management specifications for the intended application environment.

Single FETs, MOSFETs Selection Notes

Select based on the required voltage rating and current handling capacity. Consider the gate threshold voltage range for logic compatibility. Evaluate thermal resistance values against the system's heat dissipation capabilities to ensure operation within the 175°C junction limit.

Single FETs, MOSFETs Part Context

This component belongs to the AlphaSGT™ series of N-Channel MOSFETs from Alpha & Omega Semiconductor Inc. It is designed for medium-voltage applications requiring high efficiency and robust switching performance.

Single FETs, MOSFETs Replacement Considerations

Check datasheets for compatible parts with similar 150V ratings and comparable RDS(ON) values. Verify pinout compatibility and thermal characteristics before substitution.
