APTC60AM45B1G

Overview

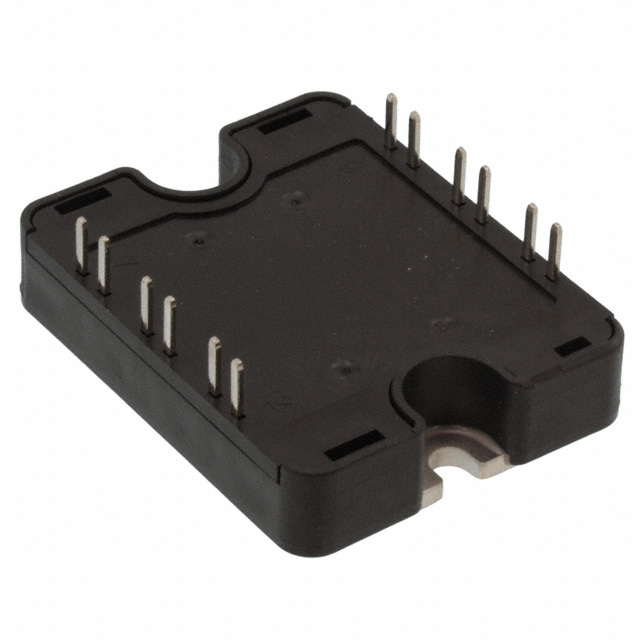

The APTC60AM45B1G is a high-performance discrete semiconductor module from Microchip Technology's CoolMOS series. It integrates three N-channel MOSFETs configured as a phase leg and boost chopper, utilizing silicon technology with a 600V drain-to-source voltage rating. The device supports a continuous drain current of 49A at 25°C and features a press-in PCB package for robust thermal management.

Feature Summary

• Integrates a three-phase leg and boost chopper configuration within a single SP1 module
• Utilizes CoolMOS silicon technology for optimized power conversion performance
• Features a press-in PCB mounting style to ensure secure mechanical connection

Applications

• High-efficiency power conversion systems
• Industrial motor drive applications
• Three-phase inverter circuits

Procurement Notes

Verify the specific suffix B1G against official Microchip documentation to confirm exact pinout and electrical characteristics. Ensure compatibility with press-in PCB mounting requirements during integration. Cross-reference datasheet parameters for thermal resistance and switching speeds before finalizing design specifications.

Selection Notes

Select this module for applications requiring integrated three-phase control with boost functionality. Evaluate the 600V rating and 49A continuous current capacity against system load requirements. Consider the SP1 package form factor for board space constraints and thermal interface needs.

Part Context

This component belongs to the CoolMOS family of discrete semiconductor modules designed for advanced power electronics. It represents an evolution in integrated power stages, combining multiple switching elements into a compact unit to reduce parasitic inductance and improve overall system efficiency.

Replacement Considerations

Consult official Microchip substitution lists for verified alternatives. Generic replacements may not match the specific SP1 package or internal configuration.
