APTGF330DA60D3G

Overview

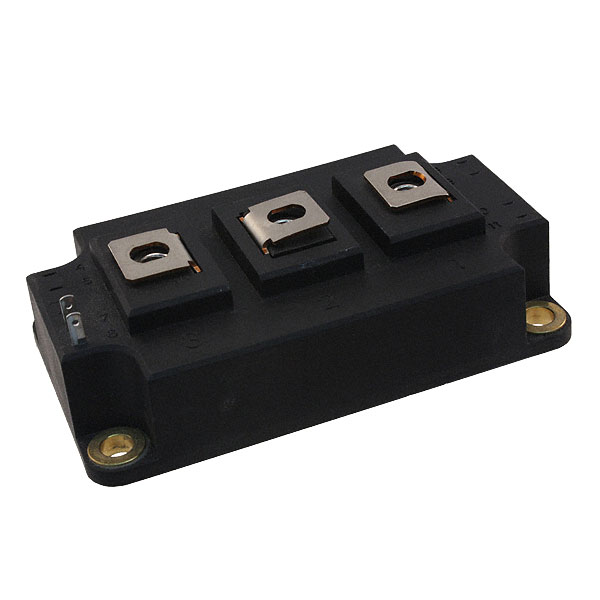

The APTGF330DA60D3G is a Non-Punch Through (NPT) FAST IGBT power module manufactured by Microsemi Corporation. It features an integrated anti-parallel diode and utilizes the D3 package with M6 power connectors. The device supports a collector-emitter breakdown voltage of 600 V and a continuous collector current of 330 A at 80°C case temperature. Maximum power dissipation is rated at 1560 W at 25°C. Key electrical parameters include a saturation voltage of 2.45 V at 400 A, a gate threshold voltage of 5.8 V typ, and a short-circuit withstand capability of 1800 A for 10 µs.

Feature Summary

• Non-Punch Through (NPT) FAST IGBT technology providing low voltage drop and low tail current
• Soft recovery parallel diodes with low forward voltage and low leakage current
• Kelvin emitter configuration designed to facilitate easy drive circuitry
• Rated Reverse Bias Safe Operating Area (RBSOA) and Short Circuit Safe Operating Area (SCSOA)

Applications

• AC and DC motor control systems
• Switched Mode Power Supplies (SMPS)
• Power Factor Correction (PFC) circuits

Procurement Notes

Verify component authenticity through authorized Microsemi channels or certified distributors. Confirm that the specific revision matches the required datasheet version. Ensure proper electrostatic discharge handling procedures are followed during storage and installation. Validate thermal interface material compatibility with the D3 package baseplate. Check for RoHS compliance documentation if environmental regulations apply to the final assembly.

Selection Notes

Select this module for applications requiring high ruggedness and stable temperature behavior due to the positive temperature coefficient of VCE(sat). Consider the 600 V rating and 330 A continuous current capacity against peak load requirements. Evaluate the switching frequency limits up to 50 kHz based on the specified energy losses. Ensure the heatsink design accommodates the 1560 W maximum power dissipation and the 350 g package weight.

Part Context

This component belongs to the NPT IGBT Power Module family from Microsemi Corporation. It is part of the APTGF series, which integrates fast switching IGBTs with soft recovery diodes in isolated packages. The D3 package variant specifically utilizes M6 mounting hardware for secure attachment to heatsinks. This series is engineered for industrial power conversion and motor drive environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and thermal resistance values when considering alternative manufacturers. Ensure replacement devices meet the same 600 V blocking voltage and 330 A current ratings.
