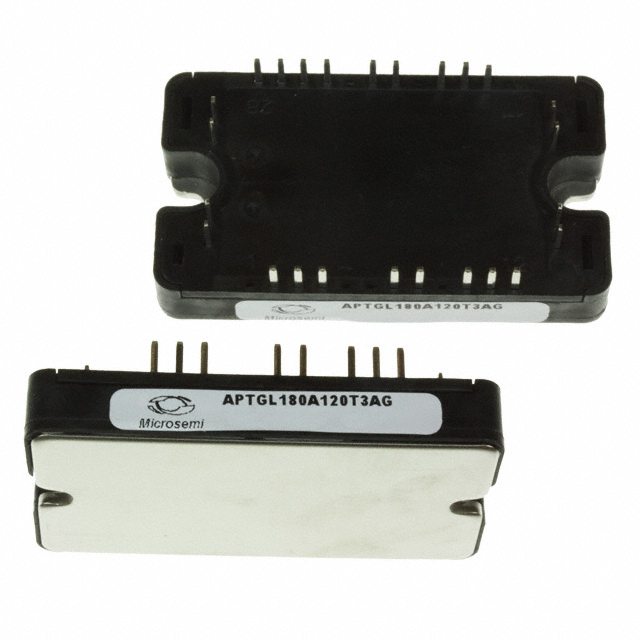

APTGL180A120T3AG

$86.62

Description：IGBT MODULE 1200V 230A 940W SP3
Series：-

SKU:cc3040f81659 Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 230A 940W SP3
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Half Bridge
Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 150A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SP3
Supplier Device Package：SP3
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：230 A
Power - Max：940 W
Current - Collector Cutoff (Max)：300 µA
Input Capacitance (Cies) @ Vce：9.3 nF @ 25 V

Download product information

APTGL180A120T3AG

Overview

The APTGL180A120T3AG is a silicon-based IGBT module manufactured by Microchip Technology, housed in the SP3-32 package. It features a dual configuration with a maximum collector-emitter voltage of 1.2 kV and a continuous collector current of 230 A at 25°C. The device exhibits a collector-emitter saturation voltage of 1.8 V and a gate-emitter leakage current of 200 nA. Power dissipation is rated at 940 W, while the maximum gate-emitter voltage is 20 V. Operating temperatures range from -40°C to +100°C, and it utilizes screw mount installation.

Feature Summary

Dual IGBT configuration within a single SP3-32 package
High voltage capability up to 1.2 kV for robust power switching
Screw mount design for secure mechanical integration

Applications

Industrial motor drives
Uninterruptible power supplies (UPS)
Induction heating systems

Procurement Notes

Verify component authenticity through authorized Microchip distributors or official channels. Confirm RoHS compliance status via the manufacturer's documentation. Ensure the specific part number matches project requirements before ordering. Check for any recent product change notifications that may affect specifications or availability.

Selection Notes

Select this module when a dual IGBT configuration is required for high-voltage applications. The 1.2 kV rating suits medium-power industrial systems. Consider the 230 A current capacity and 940 W thermal limits during circuit design. Ensure the cooling solution supports the specified operating temperature range of -40°C to +100°C.

Part Context

This component belongs to the PM-IGBT-TFS-SP3F series from Microchip Technology. It is designed for general-purpose power switching applications requiring reliable performance in industrial environments. The SP3-32 package provides a standardized form factor for easy integration into existing power electronics designs.
