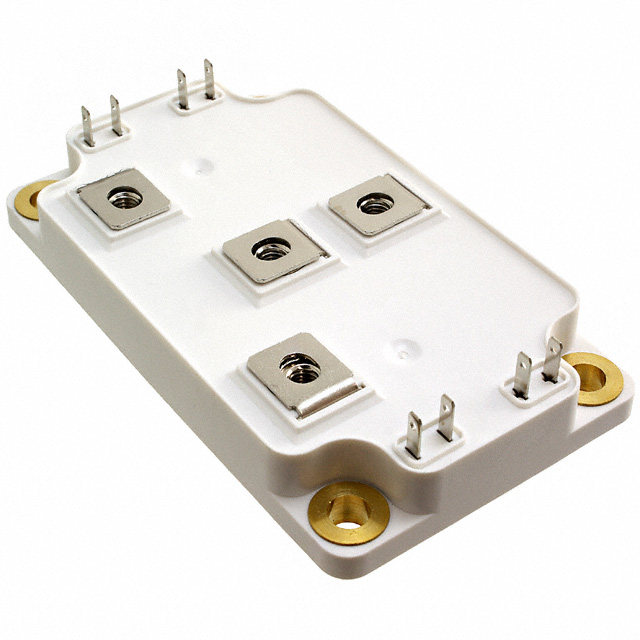

APTGL240TL120G

$241.95

Description：IGBT MODULE 1200V 305A 1000W SP6
Series：-

SKU:0c6725b8a568 Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 305A 1000W SP6
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Three Level Inverter
Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 200A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SP6
Supplier Device Package：SP6
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：305 A
Power - Max：1000 W
Current - Collector Cutoff (Max)：2 mA
Input Capacitance (Cies) @ Vce：12.3 nF @ 25 V

Download product information

APTGL240TL120G

Overview

The APTGL240TL120G is a silicon IGBT module manufactured by Microchip Technology, housed in an SP6 screw-mount package. It features a single configuration with a maximum collector-emitter voltage of 1.2 kV and a continuous collector current of 305 A at 25°C. The device exhibits a collector-emitter saturation voltage of 1.8 V and a power dissipation rating of 1 kW. Operating within a temperature range of -40°C to +100°C, it has a maximum gate-emitter voltage of 20 V and weighs approximately 110 g.

Feature Summary

High-current capability suitable for demanding power conversion applications
Robust thermal management through screw-mount installation in SP6 packaging
Optimized low saturation voltage for improved conduction efficiency

Applications

Industrial motor drives
Uninterruptible power supplies
Inverter systems

Procurement Notes

Verify the specific ordering suffix and revision level against the official Microchip datasheet to ensure compatibility with system requirements. Confirm RoHS compliance status and check for any recent product change notices that may affect pinout or electrical characteristics before finalizing procurement orders.

Selection Notes

Select this component when high current handling and robust packaging are required. Ensure the cooling solution supports the 1 kW power dissipation rating. Verify that the drive circuit can handle the 20 V gate-emitter limit and that the PCB layout accommodates the SP6 screw-mount footprint dimensions.

Part Context

This part belongs to the APTGL series of high-power IGBT modules from Microchip Technology. It utilizes silicon technology and is designed for industrial applications requiring reliable switching performance. The SP6 package provides a standardized form factor for mounting on heatsinks in various power electronic architectures.

Replacement Considerations

Consult the official Microchip replacement guide for verified substitutes. Cross-reference key parameters such as VCEO, IC, and package type when evaluating alternative components to ensure mechanical and electrical compatibility.
