APTGT100DU170TG

Overview

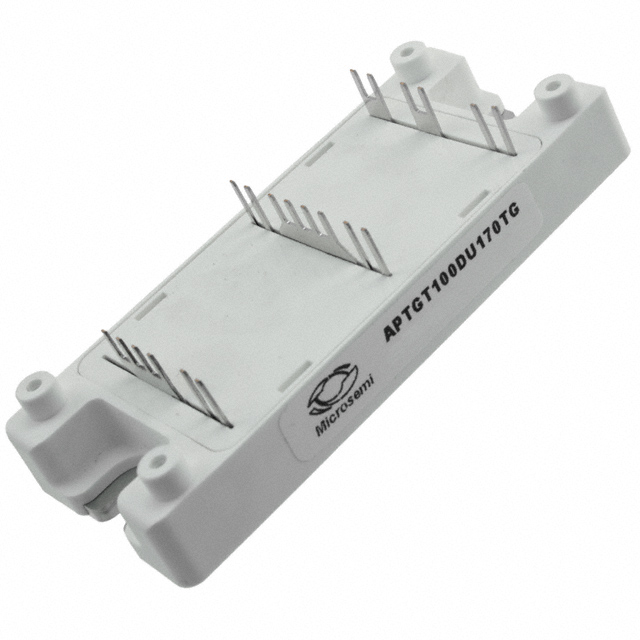

The APTGT100DU170TG is a Trench Field Stop (TFS) IGBT module manufactured by Microchip Technology. It features a dual common source configuration housed in an SP4 screw-mount package. The device supports a maximum collector-emitter voltage of 1700 V and delivers a continuous collector current of 150 A at 80°C case temperature, with a saturated voltage of 2 V. Power dissipation is rated at 560 W. Operating temperatures range from -40°C to +175°C, with a maximum gate-emitter voltage of 20 V.

Feature Summary

• Utilizes Trench Field Stop technology for optimized switching performance.
• Dual common source configuration enables efficient half-bridge applications.
• Designed for high thermal stability with extended junction temperature limits.

Applications

• Industrial motor drives
• Uninterruptible power supplies
• High-frequency inverters

Procurement Notes

Verify the specific suffix 'TG' against official Microchip documentation to confirm compliance with RoHS directives and material declarations. Confirm that the SP4 package dimensions match the target chassis design. Ensure thermal interface materials are compatible with the specified operating temperature range up to 175°C. Cross-reference the datasheet revision history for any recent product change notifications affecting electrical characteristics or pinout assignments.

Selection Notes

Select this component for applications requiring robust 1700 V blocking capability and high current handling in compact modules. The TFS technology offers a balance between low conduction losses and fast switching speeds. Consider the SP4 package size relative to available cooling solutions. Evaluate the 150 A continuous current rating against peak load requirements to ensure adequate safety margins during transient conditions.

Part Context

This module belongs to Microchip's Trench Field Stop series, designed for medium to high-power industrial applications. It replaces older generation IGBTs with improved efficiency and thermal performance. The SP4 package is standard for dual configurations in this voltage class, facilitating easy integration into existing power electronics architectures.

Replacement Considerations

Direct substitutes within the same voltage and current ratings should be verified via official cross-reference lists. Ensure replacement modules maintain identical package dimensions and pinouts to avoid mechanical redesign. Validate that alternative technologies offer comparable switching speed and thermal resistance characteristics.

FAQ

What is the maximum junction temperature for this module?

The maximum operating junction temperature is +175°C.

Is this module suitable for hard-switching applications?

Yes, the Trench Field Stop technology is designed for efficient operation in hard-switching environments typical of industrial drives.
