APTGT200A60T3AG

$72.94

Description：IGBT MODULE 600V 290A 750W SP3
Series：-

SKU:a43ce994e1c6 Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 600V 290A 750W SP3
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Half Bridge
Vce(on) (Max) @ Vge, Ic：1.9V @ 15V, 200A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SP3
Supplier Device Package：SP3
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：290 A
Power - Max：750 W
Current - Collector Cutoff (Max)：250 µA
Input Capacitance (Cies) @ Vce：12.3 nF @ 25 V

Download product information

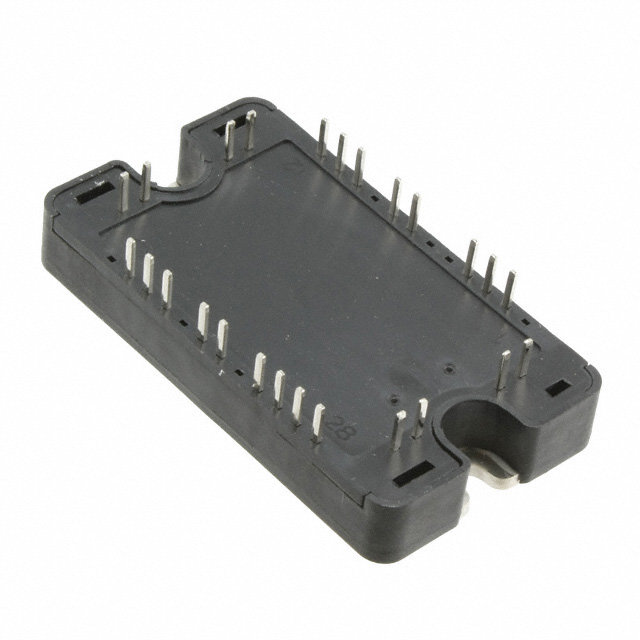

APTGT200A60T3AG

Overview

The APTGT200A60T3AG is a single IGBT module manufactured by Microchip Technology, utilizing silicon technology. It features a maximum collector-emitter voltage of 600 V and a continuous collector current of 290 A at 25°C. The device has a collector-emitter saturation voltage of 1.5 V and a power dissipation rating of 750 W. It operates within a temperature range of -40°C to +100°C and uses an SP3-32 package with screw mount installation.

Feature Summary

Single configuration IGBT module
SP3-32 package design
Screw mount installation style

Applications

Industrial motor drives
Power supply systems
Inverter circuits

Procurement Notes

Verify the exact part number against official Microchip Technology documentation before procurement. Confirm that the suffix matches the specific variant required for your application. Check for any recent product change notifications or datasheet revisions that may affect specifications. Ensure compatibility with your thermal management and mounting requirements.

Selection Notes

Select this component based on its 600 V rating and 290 A current capacity. Consider the SP3-32 package size for board layout constraints. Evaluate the thermal performance relative to your system's heat dissipation capabilities. Compare the saturation voltage and switching characteristics against alternative modules in the same voltage class.

Part Context

This module belongs to the APTGT series of IGBT modules from Microchip Technology. It shares the SP3-32 package form factor with other devices in this family. The series typically targets medium-power industrial applications requiring robust switching performance.
