APTGT300TL60G

$197.65

Description：IGBT MODULE 600V 400A 935W SP6
Series：-

SKU:d10fe28af421 Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 600V 400A 935W SP6
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Three Level Inverter
Vce(on) (Max) @ Vge, Ic：1.9V @ 15V, 300A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SP6
Supplier Device Package：SP6
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：400 A
Power - Max：935 W
Current - Collector Cutoff (Max)：350 µA
Input Capacitance (Cies) @ Vce：18.4 nF @ 25 V

Download product information

APTGT300TL60G

Overview

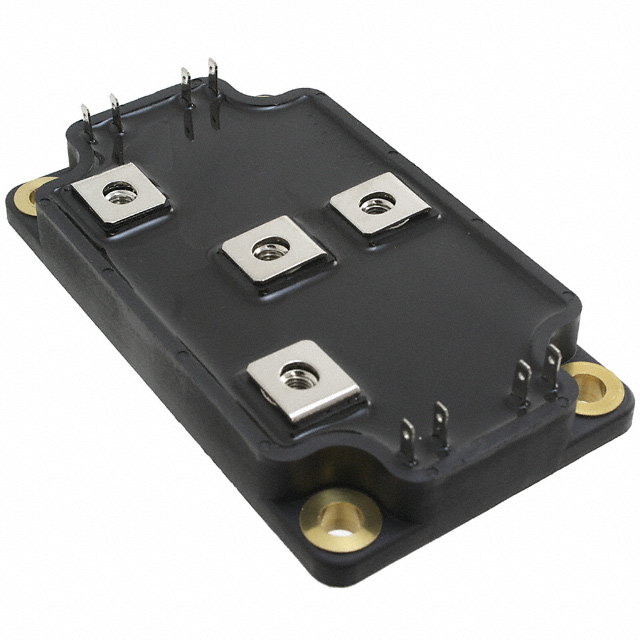

The APTGT300TL60G is a single IGBT module manufactured by Microchip Technology, designed for high-power switching applications. It features a collector-emitter maximum voltage (VCEO) of 600 V and a continuous collector current of 430 A at 25°C. The device exhibits a collector-emitter saturation voltage of 1.4 V and a gate-emitter leakage current of 500 nA. Maximum power dissipation is rated at 1.15 kW, with an operating temperature range from -40°C to +100°C. The module utilizes silicon technology and is housed in an SP6 screw-mount package, weighing approximately 110 g.

Feature Summary

Single IGBT configuration within the PM-IGBT-TFS-SP6C platform
High current handling capability suitable for industrial power conversion
Robust thermal management via screw-mount SP6 packaging

Applications

Industrial motor drives
Uninterruptible power supplies (UPS)
Induction heating systems

Procurement Notes

Verify component authenticity through authorized Microchip Technology distributors or certified partners. Confirm RoHS compliance status and specific manufacturing lot details upon order placement. Ensure supply chain documentation matches the exact part number suffix to avoid functional discrepancies due to variant differences.

Selection Notes

Select this module for applications requiring 600 V blocking voltage and high continuous current capacity. Compare against dual or three-phase configurations if circuit topology demands multiple switches. Ensure heatsink design accommodates the 1.15 kW power dissipation rating within the specified -40°C to +100°C operational envelope.

Part Context

This component belongs to the Microchip PowerTrench series of IGBT modules. It shares the SP6 mechanical footprint with other variants like APTGT300SK60G and APTGT300DH60G, facilitating standardized mechanical integration while offering distinct electrical characteristics tailored for single-switch implementations.

Replacement Considerations

Direct substitutes include APTGT300SK60G and APTGT300DH60G, which share identical SP6 packaging and similar 600 V/430 A ratings. Verify pinout compatibility and specific switching parameters before substitution.
