APTGT600A60G

$213.08

Description：IGBT MODULE 600V 700A 2300W SP6
Series：-

SKU:da0f391ca2ae Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 600V 700A 2300W SP6
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Half Bridge
Vce(on) (Max) @ Vge, Ic：1.8V @ 15V, 600A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SP6
Supplier Device Package：SP6
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：700 A
Power - Max：2300 W
Current - Collector Cutoff (Max)：750 µA
Input Capacitance (Cies) @ Vce：49 nF @ 25 V

Download product information

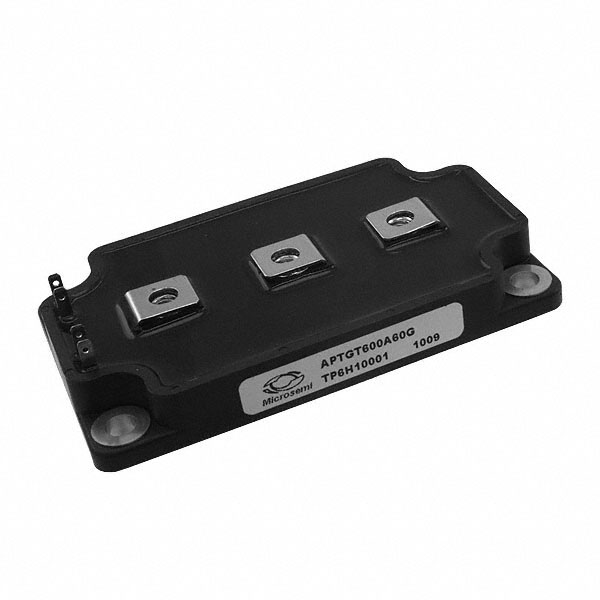

APTGT600A60G

Overview

The APTGT600A60G is a dual IGBT module from Microchip Technology, utilizing the PM-IGBT-TFS-SP6C package. It operates with a maximum collector-emitter voltage of 600 V and features a saturated collector-emitter voltage of 1.5 V. The continuous collector current at 25°C is rated at 300 A, while the gate-emitter leakage current is specified at 400 nA. Power dissipation capability reaches 750 W under standard conditions. The device supports screw mounting and functions within an operating temperature range of -40°C to +100°C.

Feature Summary

Dual configuration for half-bridge applications
High thermal performance via TFS SP6C packaging
Low saturation voltage for efficiency

Applications

Industrial motor drives
Uninterruptible power supplies
Inverter circuits

Procurement Notes

Verify the specific suffix G against official Microchip documentation to confirm RoHS compliance status. Confirm package variant matches SP6C requirements. Check latest datasheet revisions for any parameter updates before finalizing procurement specifications.

Selection Notes

Select this component for applications requiring a 600V rating with dual switch topology. Ensure thermal management solutions support the 750W dissipation limit. Verify that the 300A current rating aligns with peak load demands in the target circuit design.

Part Context

This part belongs to the APTGT series of high-speed IGBT modules designed for power conversion. It integrates silicon technology within a standardized footprint compatible with existing thermal interface designs. The module serves as a core switching element in medium-power electronic systems.

Replacement Considerations

Consult official substitution lists for equivalent SP6C packaged dual IGBTs. Verify pinout compatibility and electrical parameters match before replacing.
