APTGT600SK60G

$143.61

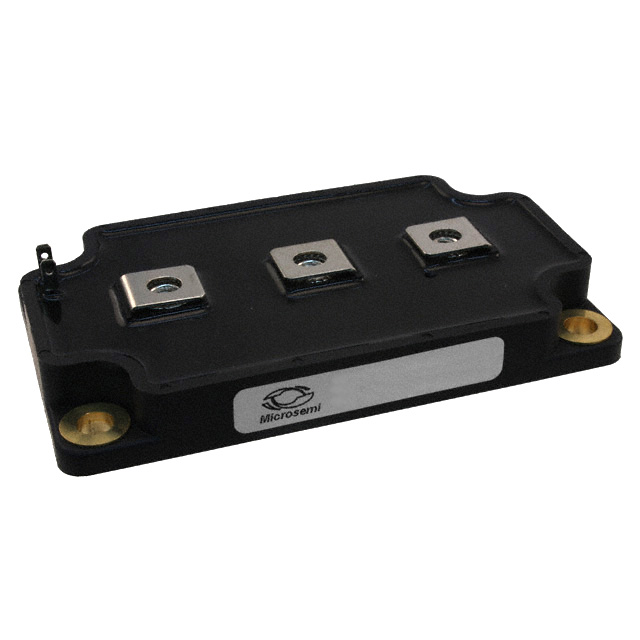

Description：IGBT MODULE 600V 700A 2300W SP6
Series：-

SKU:113e7182b43a Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 600V 700A 2300W SP6
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Single
Vce(on) (Max) @ Vge, Ic：1.8V @ 15V, 600A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SP6
Supplier Device Package：SP6
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：700 A
Power - Max：2300 W
Current - Collector Cutoff (Max)：750 µA
Input Capacitance (Cies) @ Vce：49 nF @ 25 V

Download product information

APTGT600SK60G

Overview

The APTGT600SK60G is a single IGBT module utilizing Trench Field Stop technology. It features a maximum collector-emitter voltage of 600 V and a continuous collector current of 700 A at 25°C. The device has a saturation voltage of 1.5 V, gate-emitter leakage of 400 nA, and power dissipation of 2300 W. It operates within a temperature range of -40°C to +125°C, uses screw mount installation, and is housed in the SP6 package.

Feature Summary

Single configuration with Trench Field Stop IGBT technology
Designed for high-power industrial applications
Chassis mount construction

Applications

Industrial motor drives
Power conversion systems
Inverter circuits

Procurement Notes

Verify component authenticity through authorized Microchip Technology distributors or direct channels. Confirm that the specific part number matches the required electrical specifications and package type before procurement. Ensure storage and handling procedures comply with manufacturer guidelines for sensitive semiconductor devices to prevent damage during transit and installation.

Selection Notes

Select this module for applications requiring robust 600V switching capabilities with high current handling. Consider the thermal management requirements associated with its 2300W power dissipation rating. Evaluate the mechanical constraints of the SP6 chassis mount format against the system design. Compare performance metrics against alternative modules if different voltage or current ratings are needed.

Part Context

This component belongs to the Microchip Technology IGBT module family, specifically designed for efficient power switching. It utilizes silicon technology and is part of the broader portfolio of discrete and power modules offered by the manufacturer for industrial and commercial power electronics solutions.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Microchip Technology resources for potential cross-reference options or updated product line replacements.
