Product Detailed Parameters
- Description：IGBT MODULE 1200V 900A 2500W D4
- Series：-
- Mfr：Microchip Technology
- Package：Bulk
- IGBT Type：Trench Field Stop
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 600A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：D4
- Supplier Device Package：D4
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：900 A
- Power - Max：2500 W
- Current - Collector Cutoff (Max)：5 mA
- Input Capacitance (Cies) @ Vce：40 nF @ 25 V
Download product information
Overview

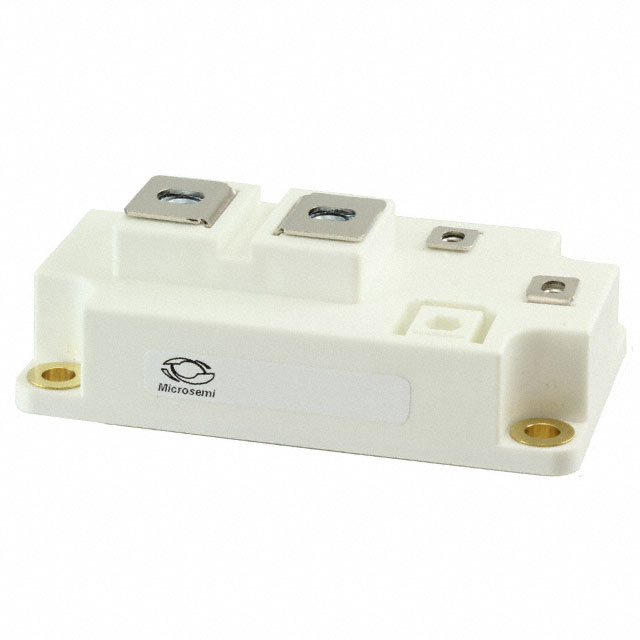

The APTGT600U120D4G is a single-switch Trench Field Stop IGBT power module manufactured by Microchip Technology. It features a maximum collector-emitter voltage (VCEO) of 1200 V and a continuous collector current (Ic) of 600 A at 25°C. The device exhibits a typical collector-emitter saturation voltage (Vce(on)) of 2.0 V and a maximum power dissipation (Pd) of 2.9 kW. It operates within a junction temperature range of -40°C to +150°C and utilizes the D4-5 screw-mount package.
Feature Summary
- Single switch configuration with trench field stop technology
- High voltage capability suitable for industrial power applications
- Robust thermal performance with high power dissipation rating
Applications
- Industrial motor drives
- Uninterruptible power supplies (UPS)
- Induction heating systems
Procurement Notes
Verify the specific datasheet revision and mechanical drawing before integration, as packaging details may vary. Confirm RoHS compliance status through official manufacturer documentation. Ensure ordering suffixes match exact requirements, as they do not inherently change function unless explicitly stated in the source data.
Selection Notes
Select this component for designs requiring a single high-current IGBT switch rated for 1200 V. The D4-5 package requires appropriate screw-mounting hardware and thermal interface materials. Compare Vce(on) and switching losses against system efficiency targets. Verify gate drive voltage compatibility with the specified 20 V maximum rating.
Part Context
This module belongs to the APTGT series of Trench Field Stop IGBT modules from Microchip Technology. It shares the D4-5 package form factor with other high-power variants in the lineup, such as the APTGT600U170D4G, but differs in voltage rating and current capacity. The series is designed for robust performance in demanding power electronics environments.
Replacement Considerations
Direct substitutes include the APTGT600U120D4 (without G suffix) if lead-free compliance is not required. Other single-switch 1200 V/600 A modules in the D4 package family may serve as alternatives, provided pinout and thermal characteristics are verified.
