APTGT600U170D4G

Overview

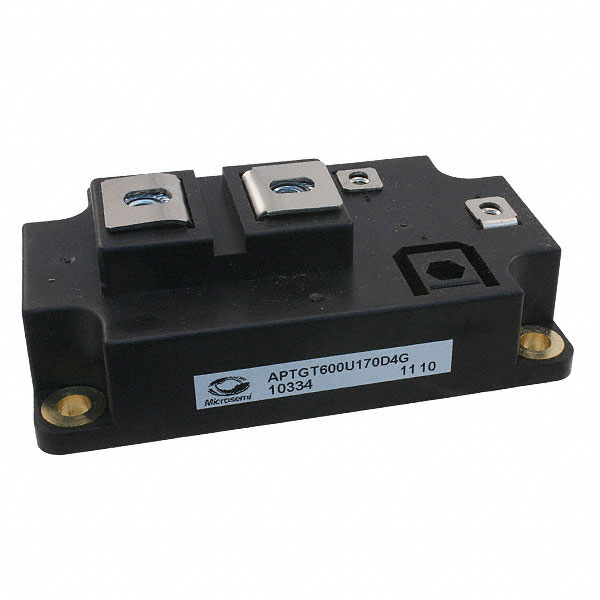

The APTGT600U170D4G is a single IGBT power module manufactured by Microchip Technology, utilizing silicon technology. It features a D4-5 package with screw mount installation. The device supports a maximum collector-emitter voltage (VCEO) of 1.7 kV and a continuous collector current of 1.1 kA at 25°C. The collector-emitter saturation voltage is 2 V, with a gate-emitter leakage current of 400 nA. Power dissipation reaches 2.9 kW, operating within a temperature range of -40°C to +125°C. Maximum gate-emitter voltage is 20 V.

Feature Summary

• High-voltage capability for demanding power conversion applications
• Robust thermal performance with high power dissipation rating
• Single configuration suitable for bridge or chopper circuits

Applications

• Industrial motor drives
• Uninterruptible power supplies (UPS)
• Induction heating systems

Procurement Notes

Verify the specific revision level against the manufacturer's datasheet before integration, as component specifications may evolve. Confirm that the D4-5 package dimensions match the target PCB or heatsink design. Ensure the gate drive circuitry accommodates the 20 V maximum rating and required current levels for reliable switching. Check for any recent product change notifications regarding material composition or manufacturing site updates.

Selection Notes

Select this module when applications require high current handling at 1.7 kV blocking voltage. The D4-5 package offers a balance of current capacity and thermal management for medium-to-high power densities. Compare saturation voltage and switching losses against alternative packages if space constraints are critical. Ensure the system can manage the 2.9 kW heat dissipation through appropriate cooling solutions.

Part Context

This part belongs to Microchip's high-power IGBT module portfolio, designed for industrial and traction applications. The D4-5 package is a standard form factor for modules in this voltage and current class. It complements other single and dual configurations within the same family, offering flexibility for different circuit topologies requiring robust semiconductor switching elements.

Replacement Considerations

Direct replacements must match the 1.7 kV voltage rating, 1.1 kA current capacity, and D4-5 package footprint. Verify pinout compatibility and thermal interface requirements. Consider modules from the same series with adjusted current ratings if electrical parameters differ slightly.
