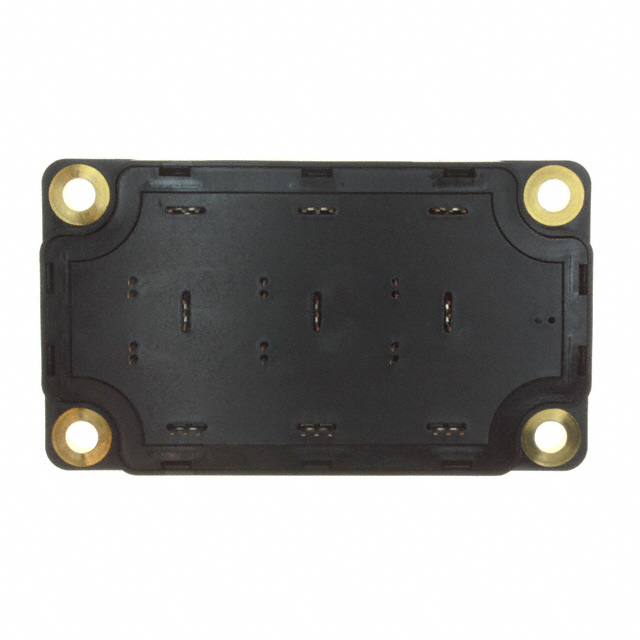

APTGT75TDU120PG

$155.72

Description：IGBT MODULE 1200V 100A 350W SP6P
Series：-

SKU:1e2c3c7afdc1 Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 100A 350W SP6P
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Triple, Dual - Common Source
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 75A
Input：Standard
NTC Thermistor：No
Operating Temperature：-
Mounting Type：Chassis Mount
Package / Case：SP6
Supplier Device Package：SP6-P
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：100 A
Power - Max：350 W
Current - Collector Cutoff (Max)：250 µA
Input Capacitance (Cies) @ Vce：5.34 nF @ 25 V

Download product information

APTGT75TDU120PG

Overview

The APTGT75TDU120PG is a Trench Field Stop (TFS) IGBT module manufactured by Microchip Technology. It features a triple configuration with dual common source topology, designed for high-power industrial applications. The device operates at a maximum collector-emitter voltage of 1200 V and delivers a continuous collector current of 100 A at a case temperature of 80°C. Key electrical parameters include a collector-emitter saturation voltage of 1.7 V and a power dissipation rating of 350 W. The component utilizes the SP6-P package style and supports chassis mounting.

Feature Summary

Utilizes Trench Field Stop (TFS) silicon technology for optimized switching performance
Features a triple configuration with dual common source architecture
Designed for robust thermal management in high-power industrial environments

Applications

Industrial motor drives
Uninterruptible power supplies (UPS)
Induction heating systems

Procurement Notes

Verify the specific suffix 'P' against official Microchip documentation to confirm package variant accuracy. Confirm that the 100 A current rating aligns with your thermal design constraints at the specified case temperature. Ensure compatibility with the SP6-P mechanical footprint before integration into existing chassis designs.

Selection Notes

Select this component when a 1200 V rated IGBT module with a 100 A current capacity is required. The dual common source configuration simplifies gate drive circuitry compared to isolated topologies. Consider the SP6-P package dimensions and screw-mount requirements during mechanical layout planning.

Part Context

This part belongs to the Microchip APTGT series of IGBT modules, which are engineered for demanding power conversion tasks. The series encompasses various voltage and current ratings, utilizing Trench Field Stop technology to enhance efficiency. The APTGT75TDU120PG specifically addresses applications requiring high reliability and compact packaging solutions.
