APTM120DU15G

$299.21

Description：MOSFET 2N-CH 1200V 60A SP6
Series：-

SKU:2348ae98bf89 Category: FET, MOSFET Arrays Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET 2N-CH 1200V 60A SP6
Series：-
Mfr：Microchip Technology
Package：Bulk
Technology：MOSFET (Metal Oxide)
Configuration：2 N-Channel (Dual)
FET Feature：-
Drain to Source Voltage (Vdss)：1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C：60A
Rds On (Max) @ Id, Vgs：175mOhm @ 30A, 10V
Vgs(th) (Max) @ Id：5V @ 10mA
Gate Charge (Qg) (Max) @ Vgs：748nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds：20600pF @ 25V
Power - Max：1250W
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SP6
Supplier Device Package：SP6
Grade：-
Qualification：-

Download product information

APTM120DU15G

Overview

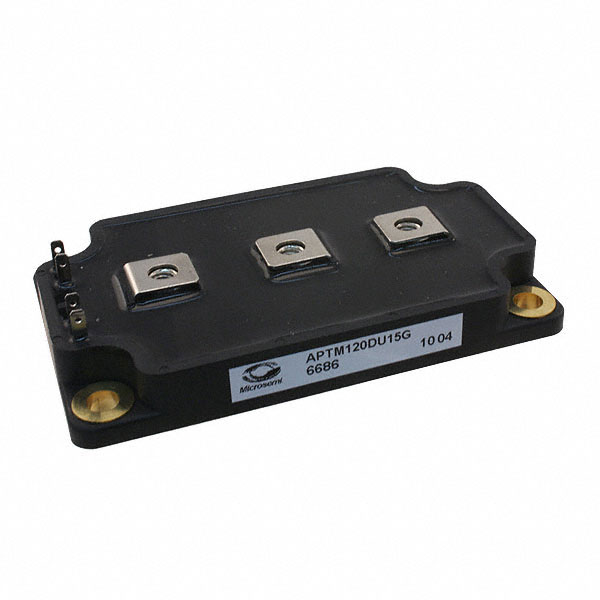

The APTM120DU15G is a dual-channel N-channel MOSFET module manufactured by Microchip Technology. It utilizes silicon technology and is housed in an SP6C package designed for chassis mounting. The device features a maximum collector-emitter voltage of 1.2 kV and supports a continuous collector current of 60 A at 25°C. Key electrical parameters include a power dissipation rating of 1250 W, a junction temperature range from -40°C to 150°C, and a gate-emitter maximum voltage of 20 V. The component weighs approximately 110 grams.

Feature Summary

Dual-channel configuration for common source applications
High-voltage capability with 1.2 kV blocking voltage
Robust thermal management supporting high power dissipation
Chassis mount design for secure mechanical integration

Applications

Industrial motor drives
Inverter systems
Power supply units
Uninterruptible power supplies (UPS)

Procurement Notes

Verify the specific suffix 'SP6C' against the official datasheet to confirm pinout compatibility and mechanical dimensions. Ensure that the required operating temperature range aligns with the specified -40°C to 150°C junction limits. Confirm RoHS compliance status through the manufacturer's latest documentation before finalizing procurement decisions.

Selection Notes

Select this module when a dual-channel solution is required for high-voltage switching applications. The 1.2 kV rating makes it suitable for medium-power industrial environments. Consider the SP6C package size and chassis mounting requirements during PCB or system layout planning to ensure adequate thermal contact and mechanical stability.

Part Context

This component belongs to the APTM series of power modules from Microchip Technology. It is categorized under discrete and power modules, specifically as a MOSFET array. The product line focuses on providing reliable switching solutions for demanding power electronics applications requiring high voltage and current handling capabilities.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify cross-compatibility with other SP6C packaged MOSFET modules only if their electrical ratings and pin configurations match the APTM120DU15G specifications exactly.
