Product Detailed Parameters

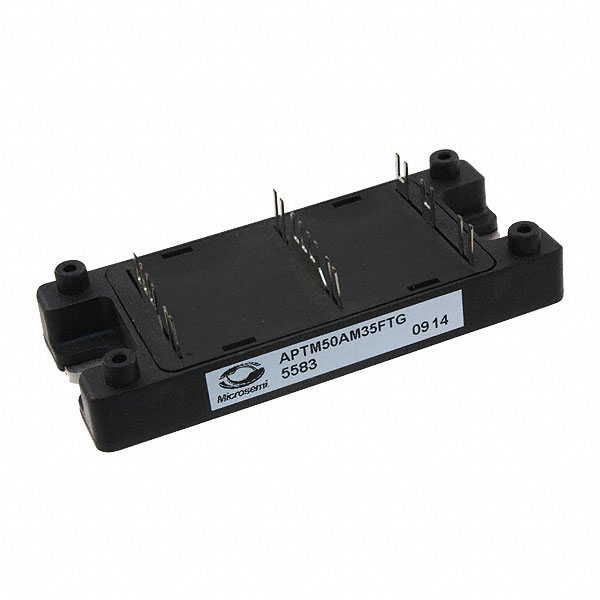

- Description：MOSFET 2N-CH 500V 99A SP4
- Series：-
- Mfr：Microchip Technology
- Package：Bulk
- Technology：MOSFET (Metal Oxide)
- Configuration：2 N-Channel (Half Bridge)
- FET Feature：-
- Drain to Source Voltage (Vdss)：500V
- Current - Continuous Drain (Id) @ 25°C：99A
- Rds On (Max) @ Id, Vgs：39mOhm @ 49.5A, 10V
- Vgs(th) (Max) @ Id：5V @ 5mA
- Gate Charge (Qg) (Max) @ Vgs：280nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds：14000pF @ 25V
- Power - Max：781W
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：SP4
- Supplier Device Package：SP4
- Grade：-
- Qualification：-
Download product information
Overview
The APTM50AM35FTG is a high-power IGBT module from Microchip Technology's AN60 series, designed for industrial motor drives and power conversion. It features a single inverter leg configuration with integrated anti-parallel diodes. The device operates at a collector-emitter voltage of 3500V and offers a continuous collector current of 120A. Key electrical characteristics include a maximum DC collector current of 240A and a short-circuit withstand time of 10 microseconds. The module utilizes a press-fit termination style for robust mechanical connection.
Feature Summary
- High-voltage capability suitable for demanding industrial applications
- Integrated fast recovery anti-parallel diode for efficient commutation
- Press-fit termination ensuring reliable thermal and electrical contact
Applications
- Industrial motor drives
- Uninterruptible power supplies (UPS)
- Induction heating systems
Procurement Notes
Verify the specific suffix FTG to confirm the press-fit termination style and RoHS compliance status. Ensure that the mounting surface preparation meets the manufacturer's specifications for press-fit installation to guarantee optimal thermal performance and mechanical integrity. Cross-reference the datasheet revision date to confirm the latest electrical parameters.
Selection Notes
Select this component when a 3500V rating is required for high-power inverter legs. Consider the 120A continuous current limit against your peak load requirements. Evaluate the thermal resistance values provided in the datasheet against your heatsink design to ensure junction temperature remains within safe operating limits under expected duty cycles.
Part Context
This module belongs to Microchip's AN60 series of high-power IGBT modules. These modules are engineered for medium to high-power applications requiring robust performance and reliability. The series typically includes various voltage ratings and current capacities to support diverse industrial power electronics designs.
Replacement Considerations
Direct replacements must match the 3500V/120A specification and press-fit termination. Verify pinout compatibility and thermal resistance values. Consult official substitution lists for equivalent models from the same manufacturer or other vendors with identical electrical and mechanical profiles.
