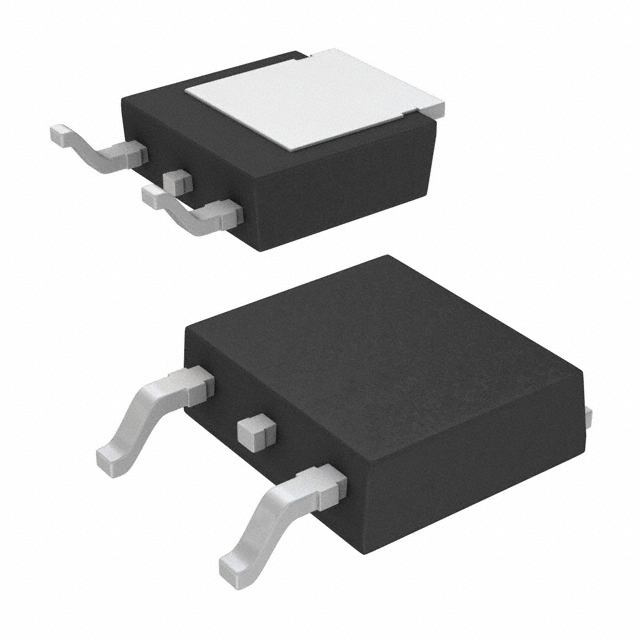

AUIRGR4045DTRL

Description：IGBT TRENCH 600V 12A TO-252AA
Series：-

SKU:41ca517b9d60 Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT TRENCH 600V 12A TO-252AA
Series：-
Mfr：Infineon Technologies
Package：Tape & Reel (TR)
IGBT Type：Trench
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：12:00 AM
Current - Collector Pulsed (Icm)：18 A
Vce(on) (Max) @ Vge, Ic：2V @ 15V, 6A
Power - Max：77 W
Switching Energy：56µJ (on), 122µJ (off)
Input Type：Standard
Gate Charge：19.5 nC
Td (on/off) @ 25°C：27ns/75ns
Test Condition：400V, 6A, 47Ohm, 15V
Reverse Recovery Time (trr)：74 ns
Operating Temperature：-55°C ~ 175°C (TJ)
Mounting Type：Surface Mount
Package / Case：TO-252-3, DPAK (2 Leads + Tab), SC-63
Supplier Device Package：TO-252AA
Grade：-
Qualification：-

Download product information

AUIRGR4045DTRL

Overview

The AUIRGR4045D is an automotive-qualified IGBT module featuring a trench technology switch and an ultrafast soft recovery diode. It provides a collector-to-emitter breakdown voltage of 600 V, with continuous collector currents of 12 A at 25°C and 6 A at 100°C case temperature. The device supports a maximum junction temperature of 175 °C and includes a clamped inductive load current rating of 24 A. Electrical characteristics include a typical saturation voltage of 2.07 V at 6.0 A and 25°C, alongside total switching losses of up to 229 µJ under specified test conditions.

Feature Summary

Low VCE (on) Trench IGBT Technology
Ultra Fast Soft Recovery Co-pak Diode
Square RBSOA for rugged transient performance
Positive VCE (on) Temperature Coefficient

Applications

Motor control applications
High frequency power supplies
DC-AC inverters

Procurement Notes

Verify the specific suffix against the ordering information table to confirm the package form factor and quantity. The 'TRL' suffix indicates a Tape and Reel Left configuration with a standard pack complete quantity of 3000 units. Confirm that the required packaging aligns with automated assembly equipment specifications before finalizing procurement orders.

Selection Notes

Select this component for designs requiring high efficiency across a wide range of operating frequencies due to low switching losses. The positive temperature coefficient ensures excellent current sharing when devices are operated in parallel. Ensure thermal management solutions accommodate the specified junction-to-case thermal resistance values for both the IGBT and diode sections.

Part Context

This part belongs to the AUIRG series of automotive-grade discrete modules. It integrates an n-channel IGBT and a co-pack diode within a single D-Pak or I-Pak housing. The 'AU' prefix denotes compliance with automotive industry requirements regarding product discontinuance and process change notifications, distinguishing it from standard industrial variants.
