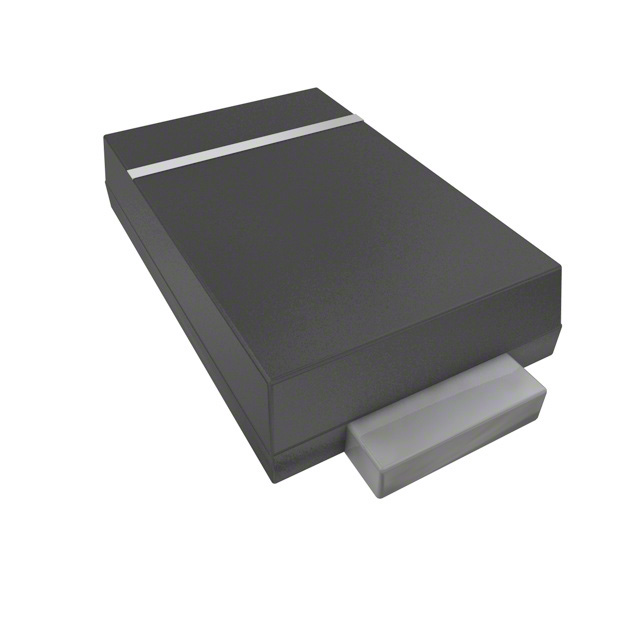

B345AF-13

$0.22

Description：DIODE SCHOTTKY 45V 3A SMAF
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:63b1cdcd2fbb Category: Single Diodes Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE SCHOTTKY 45V 3A SMAF
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：45 V
Current - Average Rectified (Io)：3A
Voltage - Forward (Vf) (Max) @ If：500 mV @ 3 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：300 µA @ 45 V
Capacitance @ Vr, F：120pF @ 4V, 1MHz
Mounting Type：Surface Mount
Package / Case：DO-221AC, SMA Flat Leads
Supplier Device Package：SMAF
Operating Temperature - Junction：-55°C ~ 150°C
Grade：-
Qualification：-

Download product information

B345AF-13

Overview

The B345AF-13 is a single Schottky barrier rectifier manufactured by Diodes Incorporated, housed in the low-profile SMAF surface-mount package. It features a peak repetitive reverse voltage of 45V and an average rectified output current of 3A. The maximum forward voltage drop is 0.50V at 25°C, with a maximum reverse leakage current of 0.30mA at 25°C. Operating junction temperature ranges from -55°C to +150°C.

Feature Summary

Low forward voltage drop for improved efficiency and cooler operation
Reduced high-temperature reverse leakage to increase reliability against thermal runaway
Guard ring die construction for transient protection
Lead-free finish compliant with RoHS directives

Applications

Boost diodes
Blocking diodes
Recirculating diodes

Procurement Notes

Verify the specific part number B345AF-13 against official Diodes Incorporated documentation to confirm electrical ratings and package type. Ensure compatibility with automated assembly processes due to the SMAF package format. Confirm compliance requirements such as RoHS and halogen-free status if mandated by the end application standards.

Selection Notes

Select this component when a 45V reverse voltage rating and 3A continuous current capacity are required in a compact surface-mount form factor. Consider the SMAF package dimensions for PCB layout constraints. Evaluate thermal management needs based on the specified thermal resistance values and derating curves for ambient temperatures exceeding 25°C.

Part Context

This device belongs to the B340AF/B345AF series of 3.0A Schottky Barrier Rectifiers. It shares the same physical package and general characteristics as the B340AF variant, differing primarily in its higher 45V reverse voltage rating compared to the 40V rating of the B340AF. Both utilize the low-profile SMAF package designed for space-constrained applications.
