BC847BFN3_R1_00501

Overview

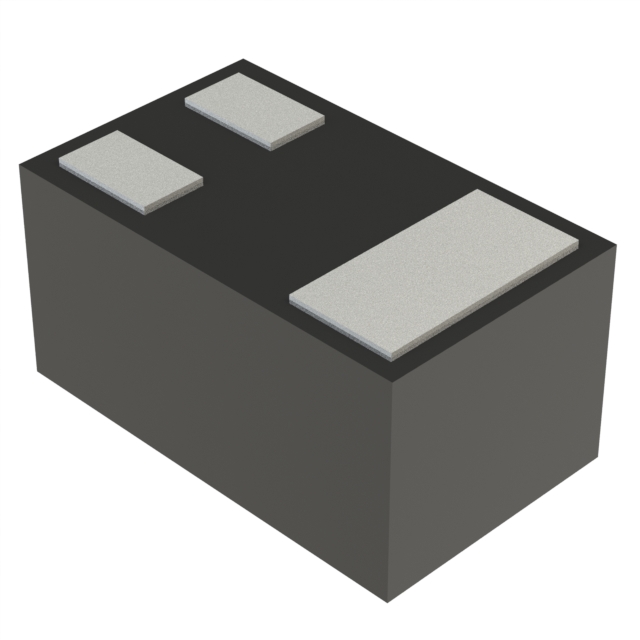

The BC847BFN3_R1_00501 is a single NPN general-purpose bipolar junction transistor manufactured by Panjit International Inc. It utilizes the DFN-3 surface-mount package and operates with a maximum collector-emitter voltage of 45V and a continuous collector current of 100mA. The device is designed for low-power applications, featuring a compact footprint suitable for space-constrained circuit designs.

Feature Summary

• Single NPN configuration within a compact DFN-3 surface-mount package
• General-purpose amplification and switching capabilities
• Qualified for automotive electronics environments

Applications

• Automotive electronic circuits requiring AEC-Q101 qualification
• General-purpose signal amplification in consumer electronics
• Switching applications in portable devices

Procurement Notes

Verify the specific suffix _R1_00501 against official Panjit documentation to confirm tape-and-reel specifications and lot traceability. Ensure compatibility with standard SMD reflow profiles and check for any recent Product Change Notifications (PCNs) that may affect material composition or manufacturing location.

Selection Notes

Select this component when a single NPN transistor with 45V Vceo and 100mA Ic rating is required in a DFN-3 package. Confirm that the AEC-Q101 qualification meets the target application's reliability standards. Verify pinout alignment with the PCB footprint before finalizing the design.

Part Context

This part belongs to the BC847 series of small-signal NPN transistors produced by Panjit. The series is widely used in general-purpose switching and amplification roles. The DFN-3 variant offers a smaller thermal and physical profile compared to traditional SOT-23 packages, facilitating higher density board layouts.

Replacement Considerations

Official substitutes include BC847B-AU_R2_000A1 and BC847BS-AU_R2_000A1 from Panjit. Cross-brand replacements must match the 45V/100mA ratings and DFN-3 footprint.
