Product Detailed Parameters
- Description：30V 300MW 420@2MA,5V 100MA NPN S
- Series：-
- Mfr：Shenzhen Slkormicro Semicon Co., Ltd.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Transistor Type：NPN
- Current - Collector (Ic) (Max)：100 mA
- Voltage - Collector Emitter Breakdown (Max)：30 V
- Vce Saturation (Max) @ Ib, Ic：600mV @ 5mA, 100mA
- Current - Collector Cutoff (Max)：15nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce：420 @ 2mA, 5V
- Power - Max：300 mW
- Frequency - Transition：300MHz
- Operating Temperature：150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：TO-236-3, SC-59, SOT-23-3
- Supplier Device Package：SOT-23
- Grade：-
- Qualification：-
Download product information
Overview

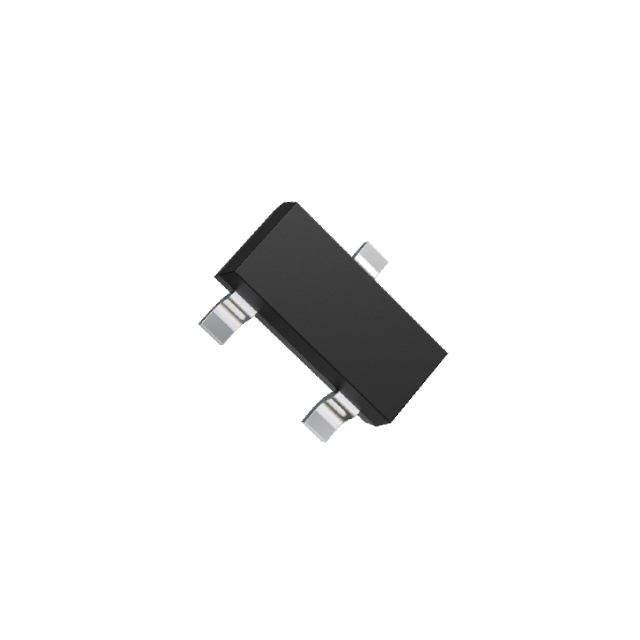

The BC848C is an NPN bipolar junction transistor (BJT) manufactured by Shenzhen Slkormicro Semicon Co., Ltd. It is designed for general-purpose switching and amplification applications in surface-mount configurations. The device operates within a collector-emitter voltage range of up to 30 V and supports a continuous collector current of 100 mA. It features a DC current gain (hFE) characteristic typical of the 'C' binning, ensuring consistent performance across varying operating conditions. The component is housed in a compact SOT-23 package, suitable for automated assembly processes.
Feature Summary
- NPN configuration optimized for low-voltage signal processing
- Surface-mount construction for space-constrained designs
- General-purpose amplification and switching capabilities
Applications
- Low-frequency amplification circuits
- General-purpose switching applications
- Signal conditioning stages
Procurement Notes
Verify the manufacturer designation matches Shenzhen Slkormicro Semicon Co., Ltd. on the component marking or official datasheet. Confirm the package type is SOT-23 and the electrical characteristics align with the specified NPN BJT parameters. Ensure compliance with relevant environmental standards if required by the application specifications.
Selection Notes
Select this component when a standard NPN transistor with 30 V breakdown and 100 mA current capacity is required. The SOT-23 package facilitates high-density PCB layouts. Consider the hFE binning characteristics for amplifier linearity requirements. Verify thermal management needs based on the expected power dissipation in the specific circuit topology.
Part Context
This part belongs to the BC848 series of small-signal NPN transistors. These devices are widely used in consumer electronics and industrial control systems due to their reliability and cost-effectiveness. The BC848C variant specifically denotes a particular gain range within the series, distinguishing it from other bins like A or B.
Replacement Considerations
Compatible substitutes include generic BC848C equivalents from other manufacturers that meet the same electrical specifications and package dimensions. Verify pinout compatibility and thermal characteristics before substitution.
