BC858BHZGT116

$0.24

Description：TRANS PNP 30V 0.1A SST3
Series：-

SKU:2a7fcc7061b3 Category: Single Bipolar Transistors Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：TRANS PNP 30V 0.1A SST3
Series：-
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
Transistor Type：-
Current - Collector (Ic) (Max)：100 mA
Voltage - Collector Emitter Breakdown (Max)：30 V
Vce Saturation (Max) @ Ib, Ic：650mV @ 5mA, 100mA
Current - Collector Cutoff (Max)：100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce：210 @ 2mA, 5V
Power - Max：200 mW
Frequency - Transition：-
Operating Temperature：150°C (TJ)
Mounting Type：Surface Mount

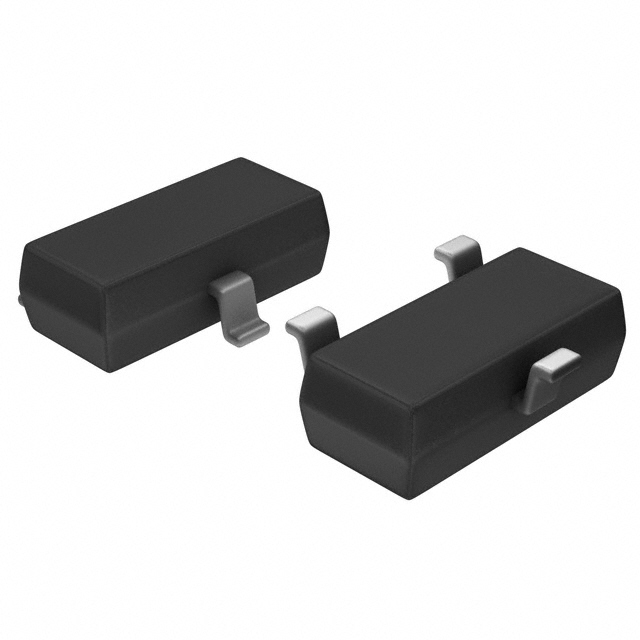

Package / Case：TO-236-3, SC-59, SOT-23-3
Supplier Device Package：SST3
Grade：Automotive
Qualification：AEC-Q101

Download product information

BC858BHZGT116

Overview

The BC858BHZGT116 is an automotive-grade PNP bipolar junction transistor manufactured by ROHM Semiconductor. It operates in a surface-mount SOT-23 (SST3) package with three terminals. Key electrical specifications include a collector-emitter voltage of -45 V, a collector current of -0.1 A, and a power dissipation of 0.2 W. The device features a DC current gain (hFE) range of 210 to 480 at specified test conditions. It complies with the AEC-Q101 qualification standard for automotive applications.

Feature Summary

Automotive-grade reliability compliant with AEC-Q101 standards
High DC current gain ranging from 210 to 480
Compact SOT-23 surface-mount packaging

Applications

General-purpose amplification circuits
Switching applications in automotive electronics
Low-frequency signal processing

Procurement Notes

Verify the specific suffix 'HZGT116' against official ROHM documentation to confirm the exact tape-and-reel quantity and marking configuration. Ensure the procurement channel provides traceability to the manufacturer's original packaging. Confirm that the delivered components match the AEC-Q101 automotive grade requirements specified in the datasheet.

Selection Notes

Select this component when designing for automotive environments requiring high reliability and small form factors. The PNP polarity and -45 V rating suit low-voltage switching tasks. Compare the hFE range against circuit requirements to ensure adequate gain. Verify thermal management capabilities within the 0.2 W power dissipation limit for the intended operating temperature range.

Part Context

This part belongs to ROHM's BC858 series of general-purpose PNP transistors. The 'HZG' designation indicates the automotive-grade variant, which undergoes stricter quality control compared to standard commercial grades. It complements the NPN BC848BHZG transistor in complementary pairs for push-pull or differential amplifier configurations.

Replacement Considerations

The BC858BHZG is listed as a compatible alternative with identical pinout and package. Verify that the non-suffixed version meets the same AEC-Q101 automotive qualification if required for the application.
