Product Detailed Parameters
- Description：TRANS NPN 100V 1A SOT-89
- Series：-
- Mfr：Panjit International Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Transistor Type：NPN
- Current - Collector (Ic) (Max)：1:00 AM
- Voltage - Collector Emitter Breakdown (Max)：100 V
- Vce Saturation (Max) @ Ib, Ic：500mV @ 100mA, 1A
- Current - Collector Cutoff (Max)：100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce：100 @ 150mA, 2V
- Power - Max：1.4 W
- Frequency - Transition：100MHz
- Operating Temperature：150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：TO-243AA
- Supplier Device Package：SOT-89
- Grade：Automotive
- Qualification：AEC-Q101
Download product information
Overview

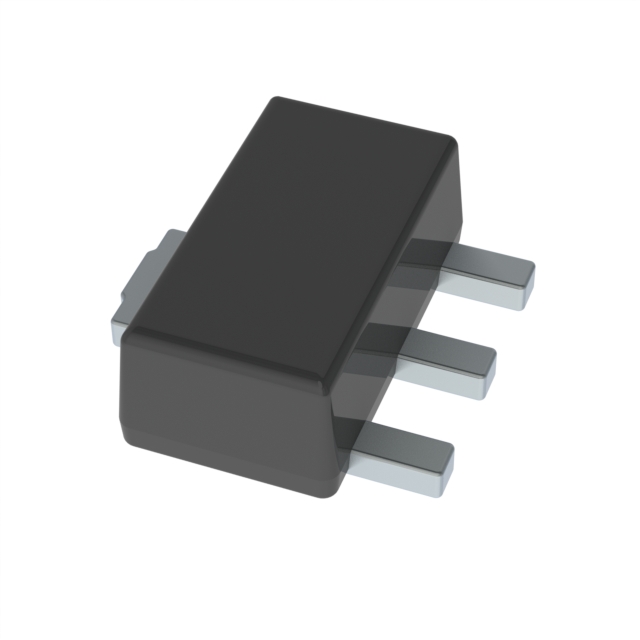

The BCX56-16-AU is a silicon NPN epitaxial transistor housed in an SOT-89 package. It features a collector-emitter voltage of 100V and a continuous collector current rating of 1A. The device offers a low collector-emitter saturation voltage of 0.35V maximum at Ic/Ib=500mA/50mA. It includes AEC-Q101 qualification, complies with EU RoHS 2.0 standards, and utilizes green molding compound per IEC61249.
Feature Summary
- Low Vce(sat) for efficient switching
- High collector current capability
- Excellent DC current gain characteristics
- AEC-Q101 qualified
Applications
- General-purpose amplification
- Switching applications
- Automotive electronics
Procurement Notes
Verify the specific revision status (REV.00S) against the latest Panjit documentation to ensure compatibility with design requirements. Confirm that the SOT-89 package marking '811D' matches the intended board silkscreen. Ensure application conditions remain within the specified thermal resistance and power dissipation limits.
Selection Notes
Select this component when a 100V NPN transistor with high current handling is required. Consider the PNP complement BCX53-16-AU for complementary circuit designs. Evaluate the thermal performance based on the 89 oC/W junction-to-ambient resistance for proper heat sinking or PCB layout planning.
Part Context
This part belongs to the BCX56 series of low Vce(sat) transistors manufactured by Panjit International Inc. It is designed for robust performance in automotive and industrial environments, supported by its AEC-Q101 qualification. The product line emphasizes reliability through lead-free manufacturing and environmentally compliant materials.
Replacement Considerations
The official PNP complement is BCX53-16-AU. No other direct substitutes are documented in the provided datasheet.
FAQ
What is the maximum collector-emitter saturation voltage?
The maximum Vce(sat) is 0.35V when tested at Ic=500mA and Ib=50mA.
Is this component suitable for automotive use?
Yes, the BCX56-16-AU is qualified according to the AEC-Q101 standard.
What is the recommended operating temperature range?
The operating junction and storage temperature range is -55°C to +150°C.
