BLP10H605Z

Overview

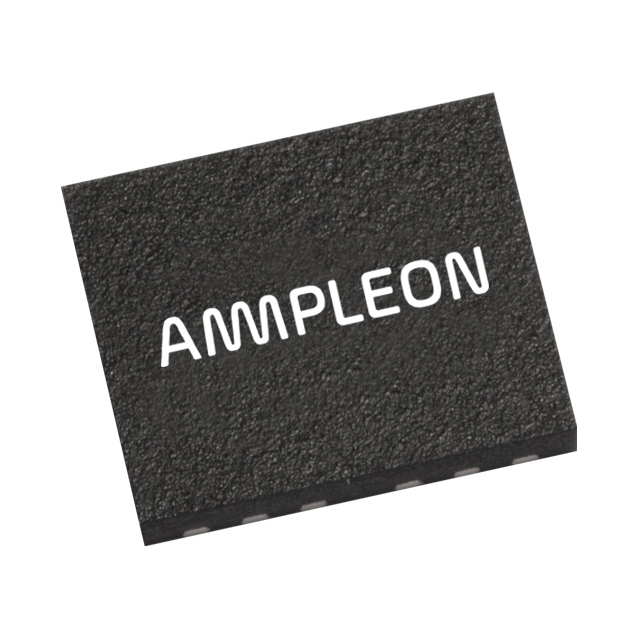

The BLP10H605Z is an RF power transistor manufactured by Ampleon USA Inc., utilizing LDMOS technology. It operates within the HF frequency range up to 1.4 GHz, delivering a rated output power of 5 W with a typical gain of 22.4 dB. The device features a breakdown voltage of 50 V and is housed in a SOT1352-1 package.

Feature Summary

• LDMOS construction for high reliability
• Optimized for HF applications up to 1.4 GHz
• Integrated thermal management

Applications

• Industrial heating systems
• Plasma generation equipment
• Medical diathermy devices

Procurement Notes

Verify the specific datasheet revision and ordering part number directly with Ampleon or authorized distributors. Confirm that the SOT1352-1 package matches your PCB footprint requirements. Ensure the 50 V supply rating aligns with your circuit design before procurement.

Selection Notes

Select this component for applications requiring moderate RF power at frequencies below 1.4 GHz. Consider the 5 W output capability and 22.4 dB gain when designing matching networks. Verify thermal dissipation needs for the SOT1352-1 package in your enclosure.

Part Context

This part belongs to Ampleon's portfolio of RF power transistors designed for industrial and medical RF applications. It complements higher-power models in the series, offering a balance of performance and size for compact systems operating in the HF band.

Replacement Considerations

No public confirmed substitute part numbers are available.
