BSA150C

Antennas RF Overview

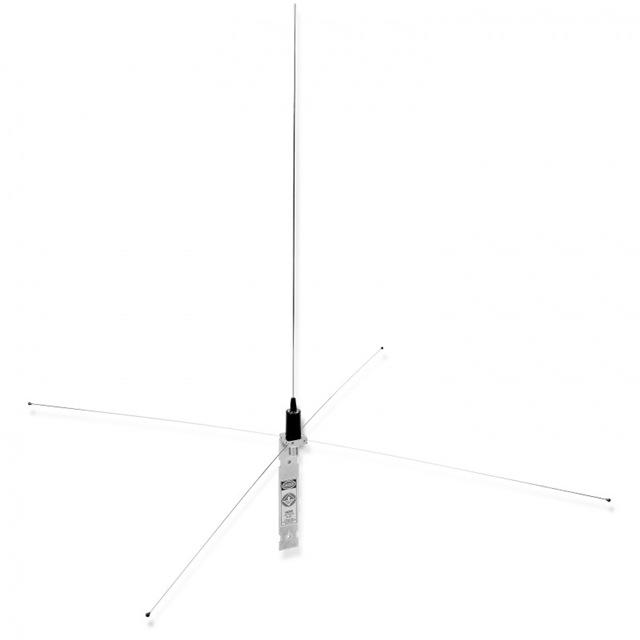

The BSA150C is an external omnidirectional whip antenna manufactured by Pulse Electronics, designed for VHF communications within the 144 MHz to 174 MHz frequency range. It features a 2.5 dBi gain and utilizes a UHF connector for interface. The unit is constructed as a professional 5/8 wave base station antenna capable of handling up to 200 watts of power.

Antennas RF Feature Summary

• Omnidirectional radiation pattern for consistent coverage
• Professional 5/8 wave base station design
• High power handling capability up to 200 watts

Antennas RF Applications

• VHF base station communications
• Mobile radio installations
• Two-way communication systems

Antennas RF Procurement Notes

Verify the specific connector type and cable assembly requirements before purchase. Confirm that the operating frequency aligns with local regulatory standards. Ensure the mounting location supports the physical dimensions and weight of the whip antenna structure for optimal signal transmission.

Antennas RF Selection Notes

Select this model for applications requiring high power handling in the VHF band. Consider the UHF connector compatibility with existing coaxial cables. Evaluate the need for 2.5 dBi gain versus higher gain options depending on the specific coverage area requirements.

Antennas RF Part Context

This component belongs to the Pulse Larsen series of antennas. It is categorized under RF antennas and external communication devices. The product line focuses on professional-grade solutions for mobile and base station environments.

Antennas RF Replacement Considerations

No direct substitute part numbers are publicly confirmed in the provided documentation. Users should consult manufacturer specifications for compatible alternatives.
