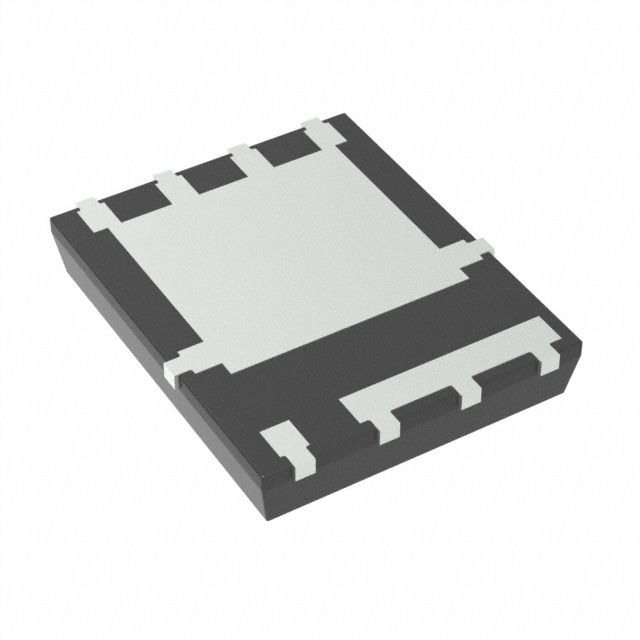

BSC014N06NSATMA1 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is MOSFET N-CH 60V 30A/100A TDSON7. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for BSC014N06NSATMA1
- Description：MOSFET N-CH 60V 30A/100A TDSON7
- Series：OptiMOS™
- Mfr：Infineon Technologies
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：60 V
- Current - Continuous Drain (Id) @ 25°C：30A (Ta), 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：6V, 10V
- Rds On (Max) @ Id, Vgs：1.45mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id：2.8V @ 120µA
- Gate Charge (Qg) (Max) @ Vgs：89 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：6500 pF @ 30 V
- FET Feature：-
- Power Dissipation (Max)：2.5W (Ta), 156W (Tc)
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Supplier Device Package：PG-TDSON-8-17
- Package / Case：8-PowerTDFN
Single FETs, MOSFETs datasheet and documents for BSC014N06NSATMA1
Single FETs, MOSFETs Overview
The BSC014N06NSATMA1 is an N-channel OptiMOS power transistor rated for a maximum drain-source voltage of 60 V. It features a maximum on-state resistance of 1.45 mΩ at a gate-source voltage of 10 V and a continuous drain current capability of 257 A at 25 °C case temperature. The device operates within a junction temperature range of -55 °C to 175 °C and utilizes the PG-TDSON-8 surface-mount package.
Single FETs, MOSFETs Feature Summary
- Optimized for high-performance synchronous rectification in switching mode power supplies
- Fully qualified according to JEDEC standards for industrial applications
- Features superior thermal resistance with a junction-to-case rating of 0.5 K/W
- Includes enlarged source interconnection to enhance solder joint reliability
Single FETs, MOSFETs Applications
- Synchronous rectification in high-performance SMPS
- Industrial power conversion systems
- DC-DC converter stages requiring low conduction losses
Single FETs, MOSFETs Procurement Notes
Verify that the ordering suffix ATMA1 corresponds to the specific reel packaging configuration required for your automated assembly line. Confirm the component revision matches the latest datasheet version to ensure accurate electrical parameters and updated thermal characteristics are utilized during design validation.
Single FETs, MOSFETs Selection Notes
Select this component when designing circuits that require robust industrial qualification alongside high current handling capabilities. The low on-resistance minimizes conduction losses, while the 175 °C operating temperature rating provides significant thermal headroom compared to standard 150 °C devices, improving system longevity under heavy loads.
Single FETs, MOSFETs Part Context
This part belongs to Infineon's OptiMOS family of power transistors, specifically engineered for efficiency and reliability. The PG-TDSON-8 package offers a compact footprint suitable for dense PCB layouts while providing enhanced thermal dissipation through direct copper contact areas for efficient heat transfer away from the silicon die.
Single FETs, MOSFETs Replacement Considerations
Direct replacements must match the 60 V rating, PG-TDSON-8 package, and similar RDS(on) specifications. Verify pinout compatibility and thermal resistance values before substitution to ensure circuit performance remains within safe operating limits.
