BSM200GB60DLCHOSA1

Description：IGBT MOD 600V 230A 730W
Series：-

SKU:428a1931538e Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 600V 230A 730W
Series：-
Mfr：Infineon Technologies
Package：Bulk
IGBT Type：-
Configuration：Single
Vce(on) (Max) @ Vge, Ic：2.45V @ 15V, 200A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 125°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：230 A
Power - Max：730 W
Current - Collector Cutoff (Max)：500 µA
Input Capacitance (Cies) @ Vce：9 nF @ 25 V

Download product information

BSM200GB60DLCHOSA1

Overview

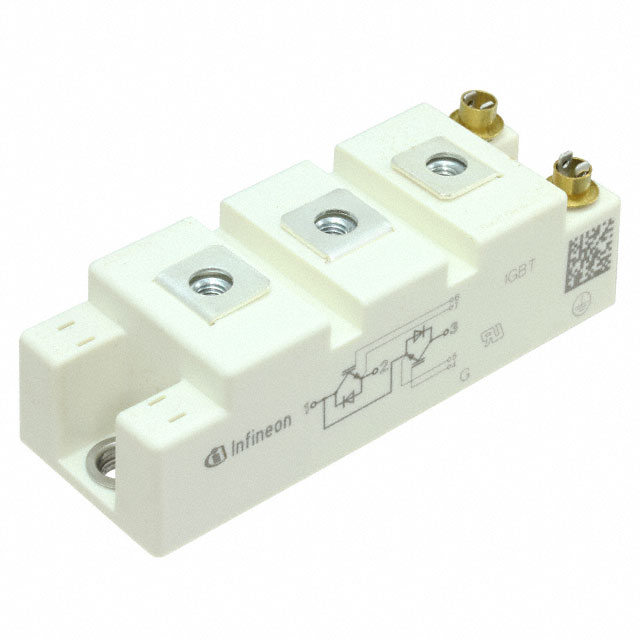

The BSM200GB60DLCHOSA1 is a dual IGBT module manufactured by Infineon Technologies. It features a collector-emitter maximum voltage of 600 V and a continuous collector current rating of 230 A. The component utilizes a flange mount package with seven terminals, designated as R-XUFM-X7. It contains two series-connected elements with built-in diodes in a center-tap configuration. The module supports a maximum operating temperature of 175 °C and complies with RoHS standards.

Feature Summary

Dual IGBT structure with integrated freewheeling diodes
Center-tap configuration for series-connected elements
Flange mount design for efficient thermal management

Applications

Industrial motor drives
Uninterruptible power supplies (UPS)
Induction heating systems

Procurement Notes

Verify the specific suffix HOSA1 against official Infineon documentation to confirm lead-free status and exact pinout compatibility. Ensure the sourcing channel provides valid traceability for industrial-grade components. Cross-reference the datasheet revision to match the required electrical characteristics for your specific circuit design requirements.

Selection Notes

Select this module for applications requiring high current handling at 600 V levels. Consider the 175 °C junction temperature capability for high-temperature environments. Evaluate the thermal resistance specifications relative to your heatsink design to ensure adequate cooling for the 230 A continuous current rating.

Part Context

This component belongs to the EUPEC/Infineon IGBT module family, specifically designed for medium-power industrial applications. It shares the same core electrical specifications as the standard BSM200GB60DLC but includes specific manufacturing or compliance markings indicated by the HOSA1 suffix.
