BSM400C12P3G202

Single FETs, MOSFETs Overview

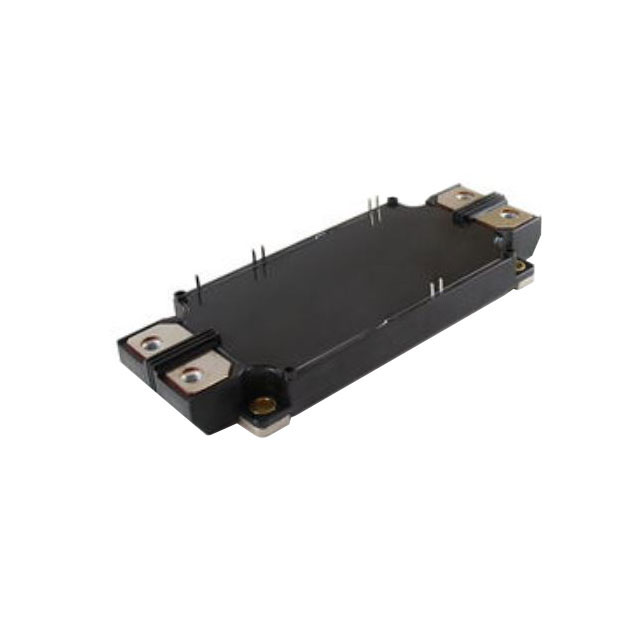

The BSM400C12P3G202 is a silicon carbide (SiC) power module manufactured by ROHM Semiconductor. It integrates SiC Schottky barrier diodes within a single package to facilitate high-efficiency power conversion. The component is designed for applications requiring robust thermal management and high-voltage operation, leveraging the material properties of silicon carbide to reduce switching losses and improve overall system performance in demanding electrical environments.

Single FETs, MOSFETs Feature Summary

• Utilizes silicon carbide semiconductor technology for enhanced thermal conductivity and breakdown voltage capabilities.
• Integrates fast-recovery diodes to minimize reverse recovery charge and associated switching losses.
• Engineered for high-frequency operation to support compact passive component sizing in power stages.

Single FETs, MOSFETs Applications

• High-efficiency DC-DC converters
• Industrial motor drive inverters
• Uninterruptible power supply (UPS) systems

Single FETs, MOSFETs Procurement Notes

Verify the specific suffix 'G202' against official ROHM documentation to confirm pinout compatibility and thermal pad specifications. Ensure the ordering code matches the exact revision required for your design, as minor suffix variations can indicate differences in terminal plating or packaging format. Cross-reference with the latest datasheet to validate RoHS compliance status and lead time constraints directly from the manufacturer.

Single FETs, MOSFETs Selection Notes

Select this module when designing systems that demand low conduction losses at high temperatures. Evaluate the thermal resistance characteristics against your heatsink solution to ensure junction temperatures remain within safe operating limits. Consider the voltage rating margin relative to the maximum bus voltage in your application to prevent overvoltage stress during transient events.

Single FETs, MOSFETs Part Context

This component belongs to ROHM's portfolio of wide-bandgap power modules, specifically targeting the industrial and automotive sectors. It represents a shift from traditional silicon IGBTs to SiC technology, offering superior efficiency in high-power density applications. The module form factor allows for direct mounting onto cold plates or heatsinks, simplifying the mechanical integration into larger power electronics assemblies.

Single FETs, MOSFETs Replacement Considerations

Consult official substitution guides for compatible SiC modules from ROHM or other manufacturers. Verify that alternative parts match the voltage class, current handling capacity, and physical footprint before implementation.
