BSS84XHZGG2CR

$0.59

Description：MOSFET P-CH 60V 230MA DFN1010-3W
Series：-
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b41bc99b276c Category: Single FETs, MOSFETs Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET P-CH 60V 230MA DFN1010-3W
Series：-
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：P-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：60 V
Current - Continuous Drain (Id) @ 25°C：230mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)：-
Rds On (Max) @ Id, Vgs：5.3Ohm @ 230mA, 10V
Vgs(th) (Max) @ Id：2.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs：-
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：34 pF @ 30 V
FET Feature：-
Power Dissipation (Max)：1W (Ta)
Operating Temperature：150°C (TJ)
Grade：Automotive
Qualification：AEC-Q101
Mounting Type：Surface Mount
Supplier Device Package：DFN1010-3W
Package / Case：3-XFDFN

Download product information

BSS84XHZGG2CR

Overview

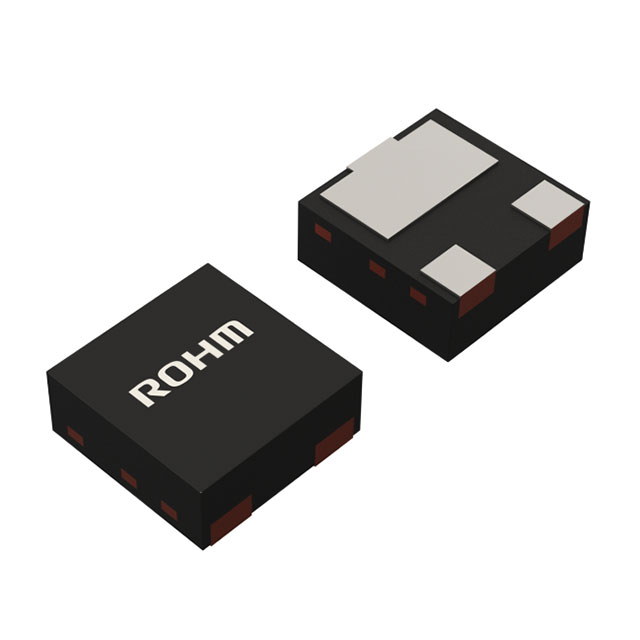

The BSS84XHZGG2CR is a P-channel automotive-grade small-signal MOSFET designed for high installation reliability in compact electronic systems. It operates with a drain-source voltage of -60V and a continuous drain current of -230mA. The device utilizes a DFN1010-3W package featuring wettable flanks to ensure stable soldering quality and facilitate automated optical inspection. Compliant with AEC-Q101 standards, it supports applications requiring miniaturization and robust performance under extreme conditions.

Feature Summary

Complies with AEC-Q101 standards for automotive-grade reliability and extreme condition performance.
Features ROHM's original wettable flank forming technology to ensure stable soldering quality for bottom electrode products.
Enables easy verification of post-installation soldering conditions using automatic inspection machines.

Applications

Electronic Control Units (ECU)
ADAS camera modules
Miniaturized automotive components

Procurement Notes

Verify the specific suffix G2CR against official documentation to confirm packaging details and ordering specifications. Ensure compatibility with DFN1010-3W footprint requirements during design integration. Confirm that the wettable flank package variant meets the specific automated inspection needs of the manufacturing line. Cross-reference the latest datasheet for any updates on supply status or recommended replacement parts.

Selection Notes

Select this component when designing for automotive environments requiring high reliability and compact form factors. The wettable flank feature is critical for designs prioritizing automated assembly verification and solder joint integrity. Consider the -60V rating and low current capacity for small-signal switching applications within ECU or sensor module architectures where space constraints are significant.

Part Context

This part belongs to ROHM's automotive single P-channel MOSFET lineup, specifically engineered for miniaturization. It replaces larger packages by offering similar electrical characteristics in a reduced DFN1010 footprint. The inclusion of wettable flanks distinguishes it from standard bottom-electrode devices, addressing common reliability issues in surface-mount assembly for critical automotive electronics.
