BSZ15DC02KDHXTMA1

Overview

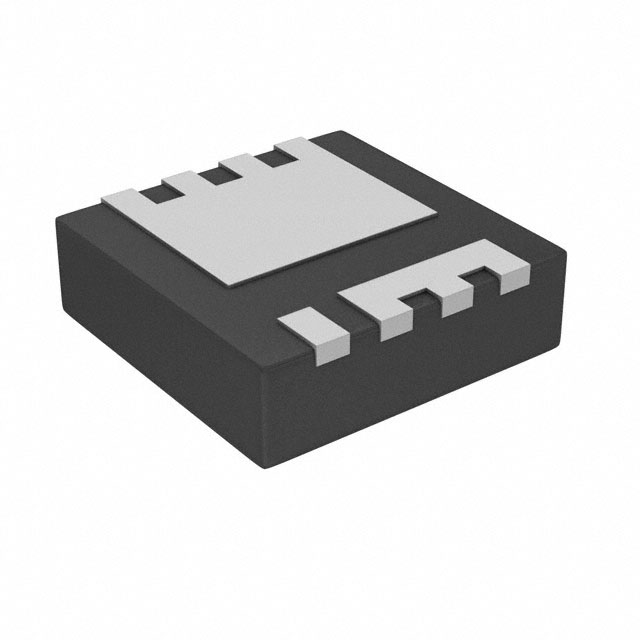

The BSZ15DC02KDHXTMA1 is a complementary small signal transistor featuring one N-channel and one P-channel MOSFET in a PG-TSDSON-8 package. It utilizes OptiMOS 2 and OptiMOS P 2 technologies with super logic level operation rated at 2.5V. The device supports an operating temperature range of -55 °C to +175 °C and is qualified according to AEC-Q101. Maximum ratings include a drain-source voltage of ±20 V, continuous drain currents of 5.1 A (N) and -3.2 A (P), and power dissipation of 2.5 W.

Feature Summary

• Complementary configuration integrating N-channel and P-channel enhancement mode transistors
• Super logic level capability enabling direct drive from 2.5 V logic interfaces
• Avalanche rated design supporting robust energy handling capabilities
• Automotive qualification compliant with AEC-Q101 standards

Applications

• Low-side and high-side switching applications
• Motor control circuits
• Power management systems requiring compact dual-transistor solutions

Procurement Notes

Verify the specific ordering suffix XTMA1 against official Infineon documentation to confirm tape-and-reel packaging specifications. Ensure component authenticity through authorized distribution channels. Confirm that the PG-TSDSON-8 footprint matches the target PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component for designs requiring a matched complementary pair within a minimal surface-mount footprint. The low gate threshold voltage facilitates efficient switching when driven by standard 2.5 V or 3.3 V logic controllers. Evaluate thermal performance based on the specified junction-to-case resistance and ensure adequate copper area for heat dissipation during operation.

Part Context

This part belongs to Infineon's OptiMOS portfolio, specifically combining standard OptiMOS 2 technology for the N-channel device with OptiMOS P 2 technology for the P-channel device. This combination optimizes performance for small-signal switching applications where low on-resistance and fast switching speeds are critical requirements.

Replacement Considerations

BSZ15DC02KD H
