Product Detailed Parameters
- Description：NEXPERIA BUK9540 - N-CHANNEL MOS
- Series：TrenchMOS™
- Mfr：Nexperia USA Inc.
- Package：Bulk
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：100 V
- Current - Continuous Drain (Id) @ 25°C：39A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
- Rds On (Max) @ Id, Vgs：39mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id：2V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs：48 nC @ 5 V
- Vgs (Max)：±15V
- Input Capacitance (Ciss) (Max) @ Vds：3072 pF @ 25 V
- FET Feature：-
- Power Dissipation (Max)：158W (Tc)
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：Automotive
- Qualification：AEC-Q101
- Mounting Type：Through Hole
- Supplier Device Package：TO-220AB
- Package / Case：TO-220-3
Download product information
Overview

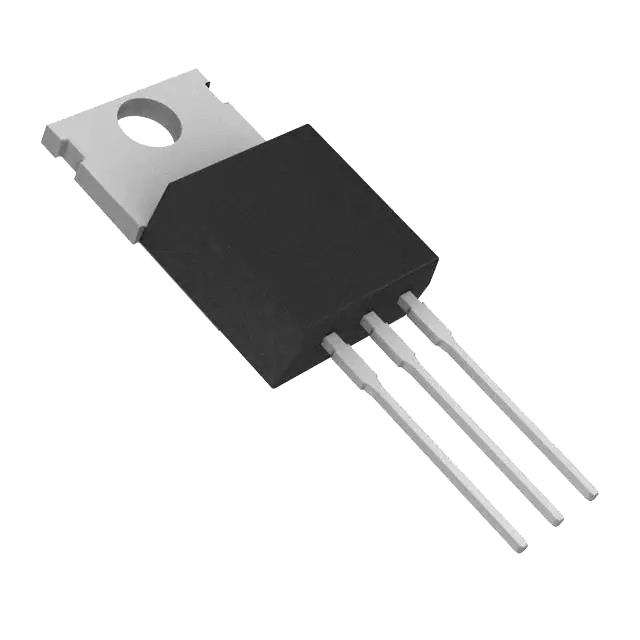

The BUK9540-127 is an N-channel TrenchMOS power MOSFET manufactured by Nexperia. It features a drain-source breakdown voltage of 100 V and supports a continuous drain current of 39 A at case temperature. The device is housed in a TO-220AB through-hole package, suitable for high-power applications requiring robust thermal performance and low on-state resistance.
Feature Summary
- Utilizes TrenchMOS technology for enhanced switching efficiency
- Designed for high-current conduction with low thermal resistance
- Single N-channel configuration for straightforward circuit integration
Applications
- Motor control systems
- Power supply units
- Industrial automation equipment
Procurement Notes
Verify the complete part number including the suffix to ensure correct packaging and tape-and-reel specifications. Confirm that the TO-220AB package dimensions match your PCB footprint requirements. Check datasheet revisions for any updates to thermal characteristics or maximum ratings before finalizing design specifications.
Selection Notes
Select this component when a 100 V rating and 39 A continuous current capacity are required in a through-hole package. Ensure adequate heatsinking is provided to maintain junction temperatures within limits during operation. Compare Rds(on) values against alternative packages if space constraints allow for surface-mount solutions.
Part Context
This device belongs to Nexperia's BUK95 series of power MOSFETs, which are engineered for general-purpose power switching applications. The series offers a balance of voltage rating, current handling, and thermal performance, making it suitable for various industrial and consumer electronics designs requiring reliable N-channel switching.
Replacement Considerations
Consult official Nexperia substitution guides for compatible alternatives. Verify pinout compatibility and electrical parameters such as Vgs(th) and Rds(on) when considering cross-brand replacements to ensure circuit functionality remains unaffected.
