Product Detailed Parameters
- Description：MOSFET N-CH 40V 100A D2PAK
- Series：TrenchMOS™
- Mfr：Nexperia USA Inc.
- Package：Bulk
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：40 V
- Current - Continuous Drain (Id) @ 25°C：100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：5V, 10V
- Rds On (Max) @ Id, Vgs：2.4mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id：2.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：80.6 nC @ 32 V
- Vgs (Max)：±10V
- Input Capacitance (Ciss) (Max) @ Vds：10285 pF @ 25 V
- FET Feature：-
- Power Dissipation (Max)：263W (Tc)
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：Automotive
- Qualification：AEC-Q101
- Mounting Type：Surface Mount

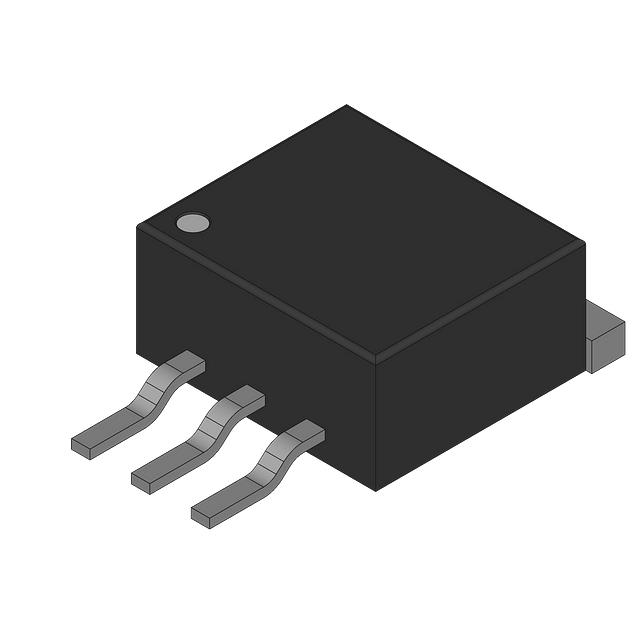

- Supplier Device Package：D2PAK
- Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Download product information
Overview
The BUK962R6-40E,118 is an N-channel TrenchMOS logic level FET manufactured by Nexperia. It utilizes TrenchMOS technology to deliver high performance in automotive applications while meeting AEC-Q101 standards. The device features a repetitive avalanche rating and supports operation in thermally demanding environments up to 175 °C. Designed as a true logic level gate, it ensures reliable switching with a Vgs(th) rating greater than 0.5V at 175 °C. This component is suitable for use in 12V, 24V, and 48V automotive systems, including motors, lamps, solenoids, start-stop micro-hybrid applications, and transmission control.
Feature Summary
- AEC-Q101 compliant for high reliability in automotive environments
- Repetitive avalanche rated for robust performance under transient conditions
- Suitable for thermally demanding environments due to 175 °C rating
- True logic level gate with Vgs(th) rating of greater than 0.5V at 175 °C
Applications
- 12V, 24V and 48V Automotive systems
- Motors, lamps and solenoid control
- Start-Stop micro-hybrid applications
- Transmission control
- Ultra high performance power switching
Procurement Notes
Verify the exact part number suffix against official Nexperia documentation to ensure correct packaging and tape-and-reel specifications. Confirm that the component meets specific AEC-Q101 requirements for your target application. Cross-reference datasheets for thermal characteristics and package dimensions to validate compatibility with your PCB layout and cooling solutions before finalizing procurement.
Selection Notes
Select this component when designing circuits requiring a logic-level N-channel MOSFET capable of operating in harsh automotive thermal environments. Its TrenchMOS technology offers efficient switching performance suitable for motor and solenoid control. Ensure the design accounts for the 175 °C junction temperature capability and repetitive avalanche ratings to maximize system durability and reliability in 12V, 24V, or 48V automotive architectures.
Part Context
This component belongs to Nexperia's BUK9 series of N-channel TrenchMOS logic level FETs. These devices are specifically engineered for high-performance automotive applications, combining low on-resistance with robust thermal management capabilities. The series is designed to meet stringent automotive quality standards, ensuring long-term reliability in critical vehicle systems such as transmission control and power steering.
Replacement Considerations
Consult official Nexperia substitution guides for verified alternatives. Do not assume pin-compatible replacements without verifying electrical parameters and package dimensions against the original datasheet.
