Product Detailed Parameters
- Description：DIODE STANDARD 1500V 10A TO220AC
- Series：-
- Mfr：NXP USA Inc.
- Package：Tube
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：1500 V
- Current - Average Rectified (Io)：10A
- Voltage - Forward (Vf) (Max) @ If：1.8 V @ 20 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：600 ns
- Current - Reverse Leakage @ Vr：100 µA @ 1300 V
- Capacitance @ Vr, F：-
- Mounting Type：Through Hole
- Package / Case：TO-220-2
- Supplier Device Package：TO-220AC
- Operating Temperature - Junction：150°C (Max)
- Grade：-
- Qualification：-
Download product information
Overview

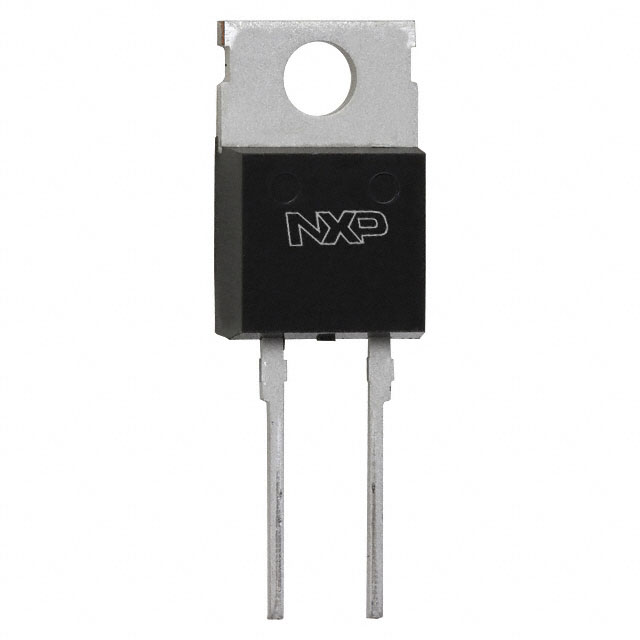

The BY359-1500,127 is a high-voltage single rectifier diode manufactured by NXP USA Inc. It features a maximum repetitive peak reverse voltage of 1500 V and an average forward rectified current rating of 10 A. The component utilizes a TO-220AC through-hole package with two pins. It is designed as a glass-passivated double diffused rectifier diode, offering low forward voltage drop and fast reverse recovery characteristics suitable for general-purpose rectification applications.
Feature Summary
- Glass-passivated construction for enhanced reliability
- Fast and soft reverse recovery performance
- Low forward voltage drop efficiency
Applications
- DC motor control and drives
- Battery chargers
- Welding power supplies
Procurement Notes
Verify the specific suffix '127' to confirm tape-and-reel packaging configuration if required. Confirm RoHS compliance status as documentation indicates no RoHS information is available. Ensure the TO-220AC package variant matches thermal management requirements. Cross-reference the manufacturer part number against current availability lists due to potential obsolete status indicators in some sources.
Selection Notes
Select this component for circuits requiring high blocking voltage up to 1500 V and moderate current handling at 10 A. The TO-220AC package provides robust mechanical mounting and heat dissipation capabilities. Consider the fast recovery time for switching applications where reverse recovery charge impacts efficiency. Verify that the glass-passivation meets environmental durability standards for the intended operating conditions.
Part Context
This device belongs to NXP's high-voltage rectifier diode family. It serves as a general-purpose solution for power conversion tasks. The TO-220AC form factor distinguishes it from surface-mount alternatives. It is engineered for industrial environments demanding reliable rectification under high-stress electrical conditions.
Replacement Considerations
Publicly confirmed substitute part numbers are not provided in the source material. Consult official NXP documentation for direct pin-compatible replacements or functional equivalents within the same voltage and current ratings.
