BYM300B170DN2HOSA1

Overview

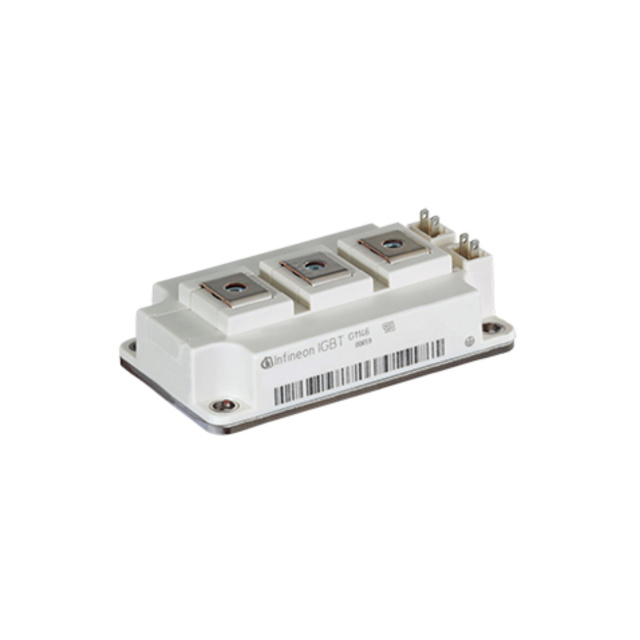

The BYM300B170DN2HOSA1 is a single IGBT module manufactured by Infineon Technologies. It features a collector-emitter breakdown voltage of 1700 V and a maximum continuous collector current of 300 A. The device is housed in a baseplate-mounted module package with a maximum power dissipation rating of 1000 W. Designed for industrial applications, it operates at a junction temperature up to 150°C. The component complies with RoHS3 standards and carries an MSL rating of 1.

Feature Summary

• Single-channel IGBT configuration for high-power switching
• Robust 1700 V voltage class suitable for demanding industrial environments
• Baseplate mounting design for efficient thermal management

Applications

• Industrial motor drives
• Uninterruptible power supplies (UPS)
• Induction heating systems

Procurement Notes

Verify the exact part number suffix against official Infineon documentation to confirm pinout and electrical specifications. Confirm RoHS3 compliance status directly with the manufacturer or authorized distributors. Check for obsolescence notices as availability may vary across supply channels.

Selection Notes

Select this module for applications requiring 1700 V blocking capability and 300 A current handling. Ensure the cooling system supports the 1000 W power dissipation limit. Verify that the drive circuitry matches the gate charge requirements of the IGBT technology used in this specific series.

Part Context

This component belongs to the BYM300 series of IGBT modules from Infineon Technologies. The series is designed for robust performance in industrial power conversion applications. The HOSA1 suffix indicates specific packaging and tape-and-reel or tray configuration details defined by the manufacturer.

Replacement Considerations

Direct replacements must match the 1700 V / 300 A specification and EconoPACK or similar mechanical footprint. Consult Infineon's official replacement guides for qualified alternatives within the same product family.
