BYV34-600,127

Diode Arrays Overview

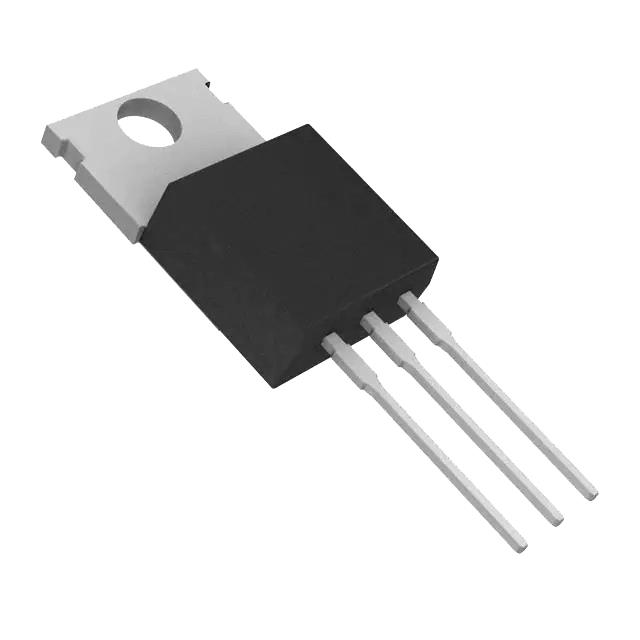

The BYV34-600,127 is a small signal switching diode manufactured by Ween Semiconductors. It features a dual configuration housed in a TO-220-3 through-hole package. The device supports a peak reverse voltage of 600 V and an average forward current of 20 A. Key electrical parameters include a maximum surge current of 132 A, a recovery time of 60 ns, a forward voltage of 1.48 V, and a reverse current of 50 uA. Operating temperatures range from -40 C to a maximum limit.

Diode Arrays Feature Summary

• Dual configuration for efficient circuit design
• Ultra-fast recovery characteristics for high-speed switching
• Isolated case connection for thermal management

Diode Arrays Applications

• High-frequency rectification circuits
• Snubber networks
• Free-wheeling applications

Diode Arrays Procurement Notes

Verify the manufacturer designation carefully, as official documentation identifies Ween Semiconductors as the producer rather than NXP USA Inc. Confirm the specific suffix matches the required package and compliance standards. Ensure the component meets RoHS and REACH requirements for your target market before finalizing procurement orders.

Diode Arrays Selection Notes

Select this component when dual diode configurations are required in a single TO-220-3 package. The ultra-fast recovery time makes it suitable for high-frequency applications where standard recovery diodes would fail. Verify that the 600 V rating and 20 A current capacity align with the system's electrical demands and thermal constraints.

Diode Arrays Part Context

This component belongs to the family of fast recovery rectifiers designed for demanding power electronics environments. The TO-220-3 package provides robust mechanical stability and heat dissipation capabilities. Dual configurations allow for compact designs in bridge rectifiers or push-pull topologies without increasing board space significantly.
