Product Detailed Parameters
- Description：DIODE SIL CARB 650V 13A TO220-2
- Series：Z-Rec®
- Mfr：Wolfspeed, Inc.
- Package：Tube
- Technology：SiC (Silicon Carbide) Schottky
- Voltage - DC Reverse (Vr) (Max)：650 V
- Current - Average Rectified (Io)：13A
- Voltage - Forward (Vf) (Max) @ If：1.7 V @ 6 A
- Speed：No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr)：0 ns
- Current - Reverse Leakage @ Vr：50 µA @ 650 V
- Capacitance @ Vr, F：295pF @ 0V, 1MHz
- Mounting Type：Through Hole
- Package / Case：TO-220-2 Isolated Tab
- Supplier Device Package：TO-220-2 Isolated Tab
- Operating Temperature - Junction：-55°C ~ 175°C
- Grade：-
- Qualification：-
Download product information
Overview

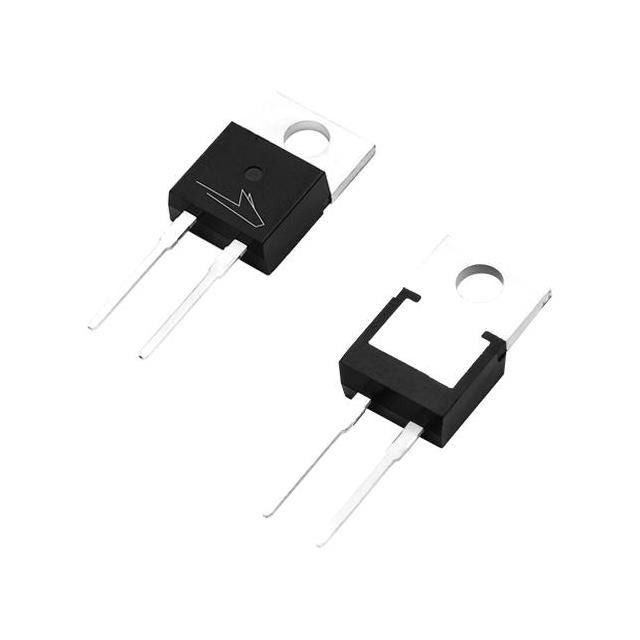

The C3D06065I is a third-generation, 650 V Silicon Carbide Schottky diode from Wolfspeed. It features an isolated TO-220-2 package with 2.5 kV electrical isolation. The device supports a continuous forward current of 13 A at 25°C and 6 A at 135°C. Typical forward voltage is 1.5 V at 6 A and 25°C, rising to 2.0 V at 175°C. Total capacitive charge is 15 nC at 400 V reverse bias. Thermal resistance from junction to case is typically 3.3 °C/W.
Feature Summary
- Electrically isolated package providing 2.5 kV isolation for enhanced safety in high-voltage designs.
- Zero reverse recovery current and forward recovery voltage due to majority carrier operation.
- Positive temperature coefficient for forward voltage enabling safe parallel operation without thermal runaway.
Applications
- Industrial Switched Mode Power Supplies
- Uninterruptible & AUX Power Supplies
- Boost for PFC & DC-DC Stages
- Solar Inverters
- AC/DC Converters
Procurement Notes
Verify the specific ordering suffix matches the required isolation and package configuration. Confirm RoHS and REACh compliance documentation availability through official Wolfspeed channels prior to finalizing procurement specifications. Ensure the selected component meets all environmental and regulatory standards required for the target industrial application.
Selection Notes
Select this component when high-frequency switching and reduced cooling requirements are necessary. The isolated package eliminates the need for external insulating materials in certain chassis designs. Evaluate thermal derating curves for operating temperatures above 25°C to ensure the continuous current rating remains within safe limits for the specific system environment.
Part Context
This discrete SiC Schottky diode belongs to Wolfspeed's third-generation product family. It is designed to replace silicon-based solutions in power electronics systems requiring higher efficiency and power density. The technology allows for increased switching frequencies while maintaining low conduction losses across a wide temperature range.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided datasheet.
FAQ
Does the C3D06065I exhibit reverse recovery charge?
No, as a Silicon Carbide Schottky diode, it is a majority carrier device with zero reverse recovery charge and zero forward recovery voltage.
What is the maximum junction temperature for this device?
The maximum junction temperature (Tj) for the C3D06065I is +175°C.
