CAB5R0A23GM4

Overview

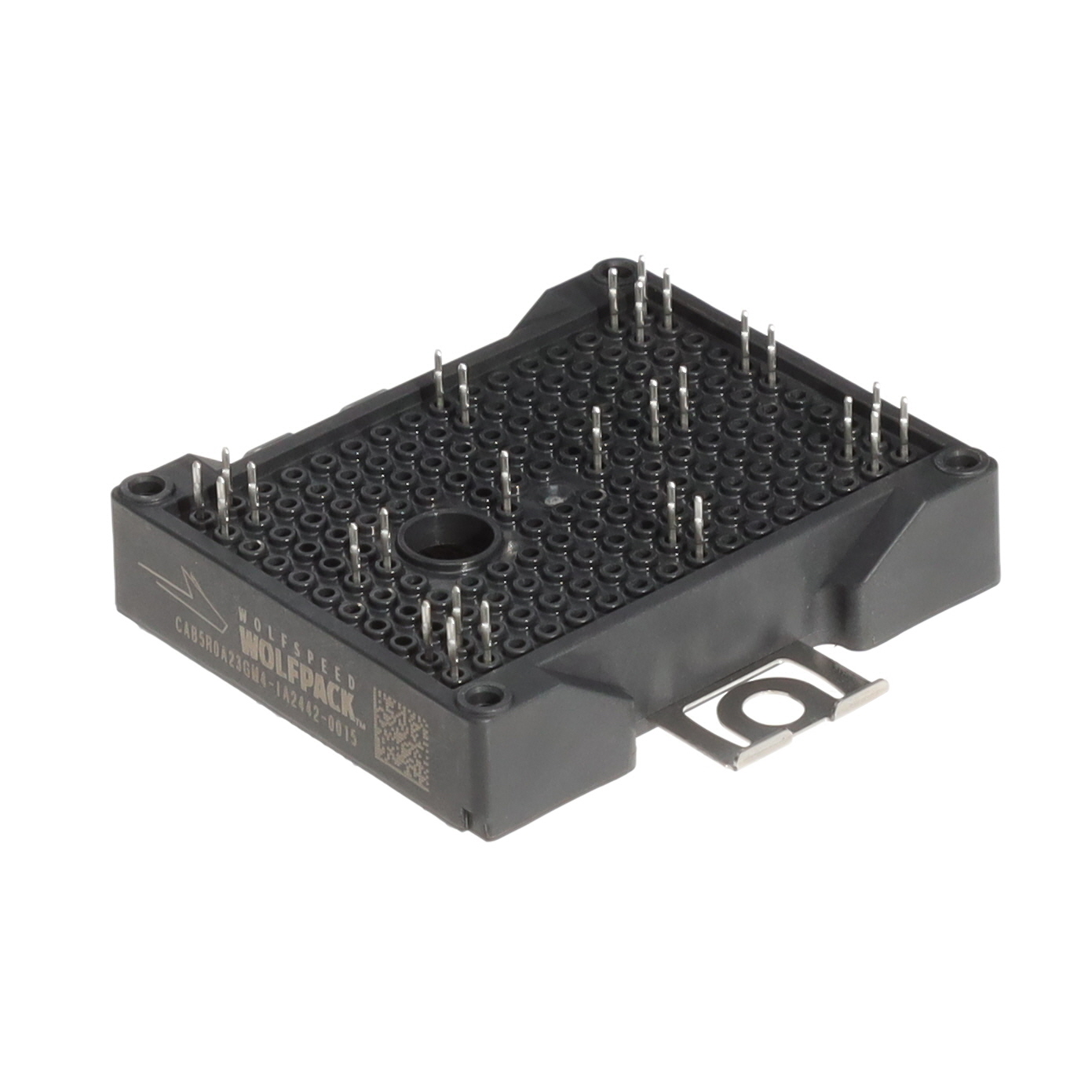

The Wolfspeed CAB5R0A23GM4 is a half-bridge silicon carbide power module featuring Gen4 technology and a 2300 V drain-source voltage rating. It provides a typical on-state resistance of 5.0 mΩ at 25 °C, with a maximum of 7.0 mΩ at 150 °C. The device supports a continuous DC drain current of 150 A at a heatsink temperature of 75 °C and a virtual junction temperature up to 150 °C. Utilizing an aluminum nitride substrate and press-fit pins, the module achieves a junction-to-heatsink thermal resistance of 0.105 °C/W. It includes an integrated NTC temperature sensor rated at 5.0 kΩ and conforms to UL STD 1557 for component recognition.

Feature Summary

• Fully SiC MOSFET-based architecture providing ultra-low switching and conduction losses
• Zero turn-off tail current characteristic inherent to MOSFET technology
• Aluminum nitride substrate construction enabling high-frequency operation and compact system design
• Press-fit pin assembly method facilitating easy integration into power systems

Applications

• High-efficiency converters and inverters
• Energy storage systems
• DC fast chargers
• Solar inverters
• Smart-grid and grid-tied distributed generation

Procurement Notes

Verify the specific ordering suffix when purchasing. The base part number CAB5R0A23GM4 indicates the absence of pre-applied phase change thermal interface material. If pre-applied TIM is required for the application, the variant ending in T (CAB5R0A23GM4T) must be selected. Confirm that the procurement documentation matches the exact alphanumeric code to ensure correct physical configuration.

Selection Notes

Select this module for applications requiring 2300 V blocking capability and low on-resistance. Ensure the gate driver can support the recommended operational gate-source voltage range of -4 V to +15 V or +18 V. Verify that the system's stray inductance and external gate resistance align with the dynamic performance curves provided in the datasheet to optimize switching energy and manage dv/dt and di/dt rates effectively.

Part Context

This component belongs to the Wolfspeed WolfPACK series of silicon carbide power modules. It utilizes Gen4 technology which incorporates a soft body diode feature. The module is designed for industrial applications and is available in configurations with or without pre-applied thermal interface material. It is intended for use in high-voltage environments where system efficiency and size reduction are critical priorities.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Designers should consult Wolfspeed technical support or authorized distributors for alternative components that match the 2300 V rating, half-bridge configuration, and compatible pinout specifications.

FAQ

What is the difference between CAB5R0A23GM4 and CAB5R0A23GM4T?

The primary difference is the inclusion of pre-applied phase change thermal interface material. The CAB5R0A23GM4 does not include pre-applied TIM, while the CAB5R0A23GM4T comes with it pre-installed.

Does this module exhibit zero turn-off tail current?

Yes, the module is fully SiC MOSFET-based and features zero turn-off tail current, which contributes to reduced switching losses compared to devices with minority carrier storage effects.

Is the module certified for safety compliance?

Yes, the module has been certified by Intertek Testing Solutions as an Electrically Isolated Semiconductor Device – Component in accordance with UL STD 1557.
