Product Detailed Parameters
- Description：IGBT MOD 1200V 100A 650W
- Series：IGBTMOD™
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：-
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：2.5V @ 15V, 100A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：100 A
- Power - Max：650 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：23 nF @ 10 V
Download product information
Overview

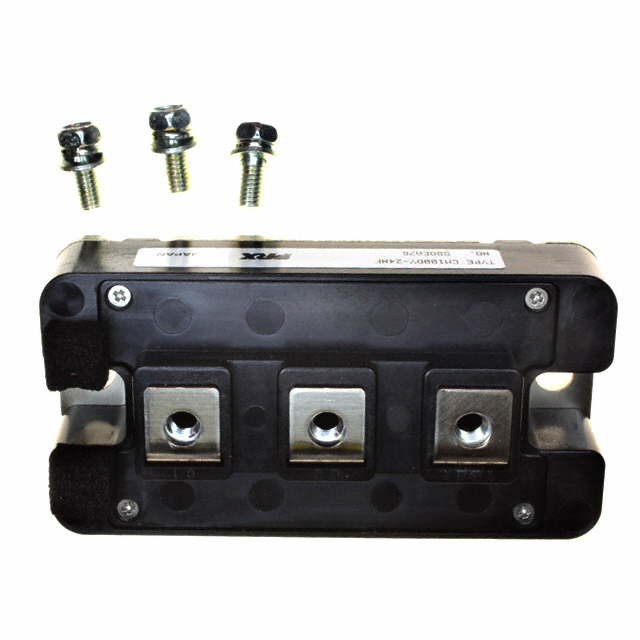

The CM100DY-24NF is a half-bridge IGBT module manufactured by Powerex Inc. It features a 1200 V collector-emitter breakdown voltage and supports a maximum continuous collector current of 100 A. The device has a maximum power dissipation rating of 650 W and an on-state collector-emitter voltage of 2.5 V at 15 V gate drive and 100 A current. Input capacitance is specified as 23 nF at 10 V, with a maximum collector cutoff current of 1 mA. The module operates within a junction temperature range of -40°C to 150°C and utilizes chassis mounting.
Feature Summary
- Half-bridge configuration with two integrated N-channel IGBT elements
- Integrated reverse-connected super-fast recovery diodes for each transistor
- Isolated flange mount design for efficient thermal management
Applications
- Switching applications in industrial power systems
- Power control circuits requiring high voltage isolation
- Chassis-mounted inverter topologies
Procurement Notes
Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm part status as the listing indicates discontinuation at major distributors. Request original datasheets to validate electrical parameters against specific application requirements before integration.
Selection Notes
Select this module for designs requiring 1200 V blocking capability and 100 A continuous current handling. Ensure the cooling system supports the 650 W power dissipation limit. Verify that the gate drive circuit provides the necessary 15 V signal for optimal saturation performance.
Part Context
This component belongs to the IGBTMOD series from Powerex Inc. It is functionally similar to other models in the series, such as the CM100DY-24A, sharing identical core electrical ratings including 100 A current and 1200 V voltage specifications.
Replacement Considerations
The CM100DY-24A is a confirmed substitute with matching 100 A and 1200 V ratings. Verify pin compatibility and thermal interface dimensions when swapping between these variants.
