Product Detailed Parameters
- Description：IGBT MOD 600V 150A 520W
- Series：IGBTMOD™
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：Trench
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：2.7V @ 15V, 150A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：150 A
- Power - Max：520 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：41 nF @ 10 V
Download product information
Overview

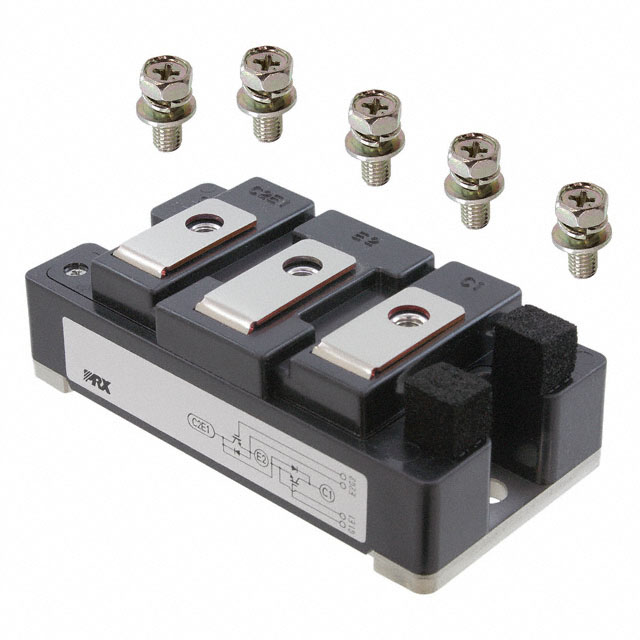

The CM150DUS-12F is a Powerex IGBTMOD dual insulated gate bipolar transistor module designed for high-frequency switching applications. It features a trench gate design with a collector-emitter voltage of 600 V and a continuous collector current of 150 A. The module provides a power dissipation rating of 520 W and utilizes chassis mounting for thermal management. It supports hard switching frequencies up to 30 kHz and soft switching frequencies between 60 kHz and 70 kHz.
Feature Summary
- Dual IGBT configuration utilizing trench gate technology for optimized switching performance
- Designed for high-frequency operation in both hard and soft switching environments
- Chassis mount package construction for robust mechanical and thermal integration
Applications
- High-frequency motor drive inverters
- Industrial power conversion systems
- Soft switching resonant converter topologies
Procurement Notes
Verify the specific datasheet version and electrical characteristics against the manufacturer's official documentation before procurement. Confirm that the 600V rating aligns with system requirements, as this differs from other similar part numbers. Ensure chassis mounting compatibility with existing thermal interfaces.
Selection Notes
Select this component for applications requiring dual IGBTs with a 600V blocking capability and 150A current handling. The trench gate architecture is suitable for designs targeting higher efficiency at elevated switching frequencies compared to standard planar technologies.
Part Context
This module belongs to the Powerex IGBTMOD series, which are engineered for demanding power electronics applications. The CM150DUS-12F specifically addresses needs for compact, high-power density solutions in industrial and automotive sectors where reliable high-frequency switching is critical.
Replacement Considerations
The CM150DU-12F is a comparable dual IGBT module within the same product family. Verify pinout compatibility and exact thermal resistance values when substituting, as packaging variations may exist between the DU and DUS series.
