Product Detailed Parameters
- Description：IGBT MOD 600V 150A 590W
- Series：IGBTMOD™
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：-
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 150A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：150 A
- Power - Max：590 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：23 nF @ 10 V
Download product information
Overview

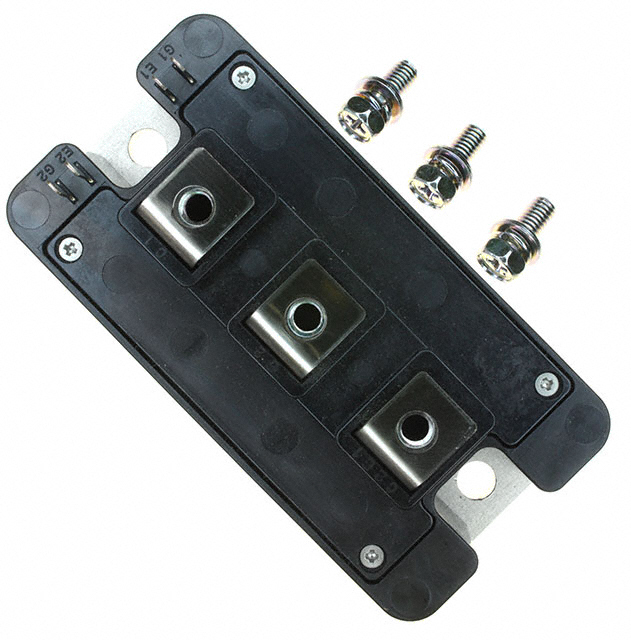

The CM150DY-12NF is a dual IGBT module from the NF-Series manufactured by Powerex Inc. It features a 600V collector-emitter breakdown voltage and a continuous collector current of 150A. The component utilizes an isolated flange mount package with seven terminals, designed for high-power switching applications. It integrates built-in diodes within a series-connected, center-tapped two-element configuration. The module supports operation up to a maximum junction temperature of 150°C and complies with RoHS standards.
Feature Summary
- Dual IGBT structure with integrated freewheeling diodes
- Isolated flange mount design for efficient thermal management
- Center-tapped configuration suitable for specific inverter topologies
Applications
- High power switching circuits
- Industrial motor drives
- Inverter systems requiring center-tapped configurations
Part Context
This component belongs to the NF-Series lineup, which includes variants such as the CM150DY-12NF and CM100DY-24NF. These modules are engineered for robust performance in demanding power electronics environments, offering a balance of current handling and voltage blocking capabilities within a standardized module footprint.
Replacement Considerations
Direct substitutes include the Mitsubishi Electric CM150DY-12NF, which shares identical electrical specifications and pinout compatibility. Designers should verify mechanical dimensions and thermal interface requirements when cross-referencing between manufacturers.
