Product Detailed Parameters

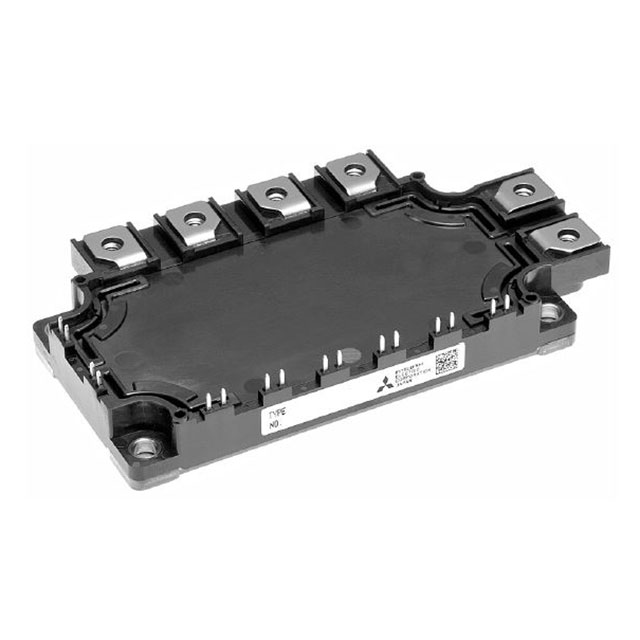

- Description：IGBT MOD 1200V 150A 935W
- Series：-
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：-
- Configuration：Three Phase Inverter with Brake
- Vce(on) (Max) @ Vge, Ic：2.25V @ 15V, 150A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：150 A
- Power - Max：935 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：15 nF @ 10 V
Download product information
Overview
The CM150RX-24S1 is a three-phase inverter module with brake functionality from Powerex Inc. It features a 1200 V collector-emitter breakdown voltage and a 150 A collector current rating. The device has a maximum power dissipation of 935 W and a collector-emitter saturation voltage of 1.8 V. It includes an integrated NTC thermistor for thermal monitoring. The module utilizes a chassis mount configuration with 35 pins and operates within a junction temperature range up to 150 °C.
Feature Summary
- Integrated braking circuitry for three-phase inverter applications
- Built-in NTC thermistor for precise thermal management
- Chassis mount design for robust mechanical stability
Applications
- Three-phase motor drives
- Industrial inverter systems
- Variable frequency drive (VFD) units
Procurement Notes
Verify the specific suffix '1' against official Powerex documentation to confirm the inclusion of the brake function, as variations exist within the series. Ensure compatibility with required gate drive voltages and thermal interface materials. Cross-reference pinout diagrams to match chassis mounting requirements. Confirm availability status directly with authorized distributors, as lead times may vary.
Selection Notes
Select this module for applications requiring integrated braking capabilities in three-phase configurations. Evaluate thermal resistance characteristics against system heat sink specifications. Consider the 150 A current rating relative to peak load demands. Verify that the 1200 V blocking voltage exceeds the maximum DC bus voltage in the target circuit design.
Part Context
This component belongs to the Powerex IGBT module family designed for high-power switching applications. It integrates multiple IGBT transistors into a single package to form a complete three-phase bridge. The series is engineered for industrial environments requiring reliable performance under high electrical stress.
Replacement Considerations
Consult official substitution guides for equivalent modules with matching voltage and current ratings. Verify pin-to-pin compatibility if replacing in existing designs. Ensure thermal and electrical characteristics align with the original system requirements.
