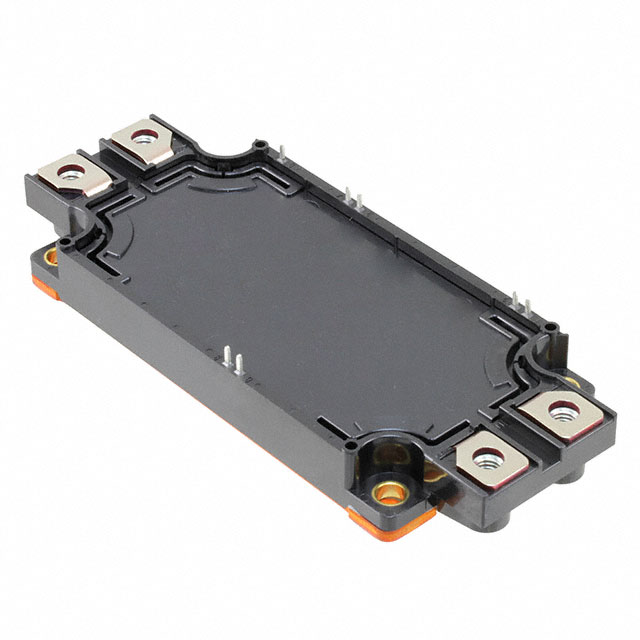

CM225DX-24S1

$60.91

Description：IGBT MOD 1200V 225A 1250W
Series：-

SKU:ffe3b4f6cadf Category: IGBT Modules Brand: Powerex Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 1200V 225A 1250W
Series：-
Mfr：Powerex Inc.
Package：Tray
IGBT Type：-
Configuration：Half Bridge
Vce(on) (Max) @ Vge, Ic：2.35V @ 15V, 225A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：-
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：225 A
Power - Max：1250 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：20 nF @ 10 V

Download product information

CM225DX-24S1

Overview

The CM225DX-24S1 is a dual IGBT module from Mitsubishi Electric, belonging to the S1-series NX type. It utilizes Silicon technology and is designed for high-power switching applications. The component features a robust construction suitable for industrial environments. Official documentation identifies it as an IGBT module with specific electrical characteristics defined in its datasheet. This part number represents a distinct configuration within the manufacturer's power semiconductor portfolio.
