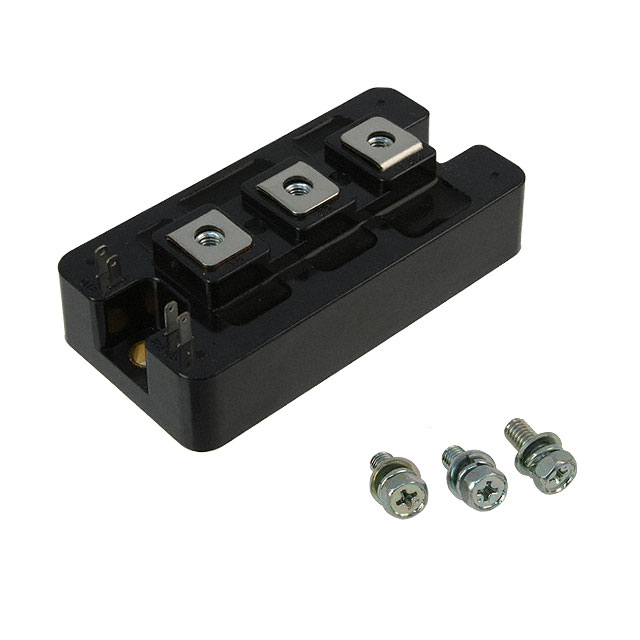

CM300DY-12H

Overview

The CM300DY-12H is a dual IGBT module manufactured by Powerex, designed for high-power switching applications. It features a half-bridge configuration with two N-channel IGBT transistors and integrated reverse-connected super-fast recovery free-wheel diodes. The device supports a collector current of 300 Amperes and a collector-emitter voltage of 600 Volts. Key electrical characteristics include low saturation voltage (VCE(sat)) and discrete super-fast recovery diodes with a 70ns recovery time. The module operates at frequencies between 20-25kHz and utilizes an isolated baseplate for efficient thermal management.

Feature Summary

• Half-bridge configuration integrating two IGBTs with built-in super-fast recovery diodes
• Isolated baseplate design to simplify system assembly and enhance thermal management
• Optimized for high-frequency operation with low drive power requirements

Applications

• AC motor control systems
• Motion and servo control drives
• Uninterruptible power supplies (UPS)
• Welding power supplies
• Laser power supplies

Procurement Notes

Verify the specific manufacturer datasheet version when sourcing this component, as Powerex may update internal specifications or packaging details over time. Confirm that the received unit matches the CM300DY-12H designation exactly, ensuring compatibility with existing thermal interface materials and mounting hardware. Cross-reference pinouts and isolation ratings against the original design schematics before integration into new equipment.

Selection Notes

Select this module for applications requiring a robust half-bridge topology with moderate current handling capabilities around 300A. The 600V rating suits standard industrial AC bus voltages. Consider the 70ns diode recovery speed when designing snubber circuits or evaluating switching losses at the target operating frequency of 20-25kHz. Ensure the cooling solution can handle the thermal dissipation associated with the specified VCE(sat) levels under continuous load conditions.

Part Context

This component belongs to the Powerex IGBTMOD series, which focuses on insulated modules for demanding switching environments. The 'CM' prefix typically denotes a dual module configuration, while 'DY' indicates the inclusion of diodes. The '12H' suffix specifies the 600V voltage class within this product family, distinguishing it from higher voltage variants like the 1200V models.

Replacement Considerations

Direct replacements must match the 300A/600V rating and half-bridge pinout. Potential alternatives include other manufacturers' 300A 600V half-bridge modules, but careful verification of mechanical dimensions, thermal resistance, and gate threshold voltages is required to ensure functional equivalence without redesigning the PCB or heatsink interface.
