CM300DY-12NF

Overview

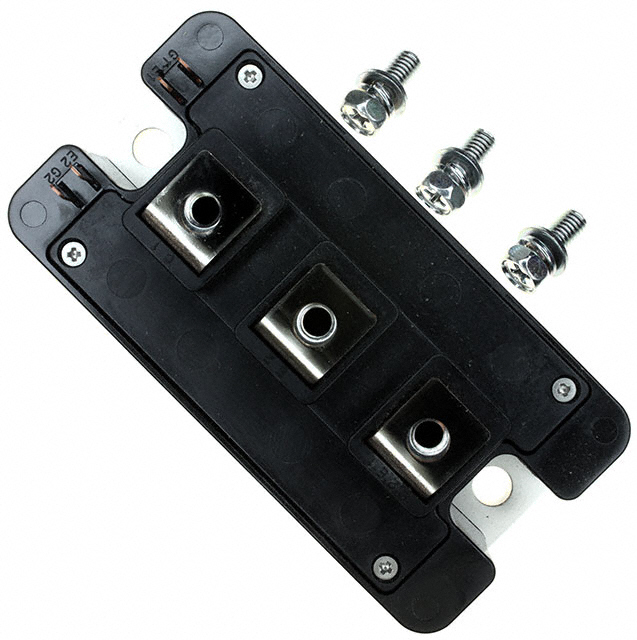

The CM300DY-12NF is a dual IGBT module from the NF-Series, rated for 600 Volts and 300 Amperes. It integrates two N-channel Insulated Gate Bipolar Transistors in a half-bridge configuration, each paired with a discrete super-fast recovery free-wheel diode. The components are isolated from the heat sinking baseplate to facilitate thermal management. This power semiconductor device is designed for high-power switching applications requiring robust isolation and efficient drive characteristics.

Feature Summary

• Half-bridge configuration with integrated super-fast recovery free-wheel diodes
• Isolated baseplate design for simplified system assembly and thermal management
• Low drive power requirements combined with low saturation voltage

Applications

• AC motor control systems
• Uninterruptible Power Supplies (UPS)
• Battery powered supplies

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific manufacturing lot dates against current regulatory requirements. Ensure storage conditions meet moisture sensitivity level specifications prior to installation to prevent package damage during soldering processes.

Selection Notes

Select this module for applications requiring a 600V rating and 300A continuous current capacity in a half-bridge topology. Evaluate thermal resistance parameters against the intended heatsink design to ensure junction temperatures remain within safe operating limits. Verify gate drive compatibility with the specified low drive power characteristics to optimize circuit efficiency.

Part Context

This component belongs to the CM series of standard IGBT modules manufactured by Powerex Inc., which acquired Mitsubishi Electric's power semiconductor business. The CM300DY-12NF shares its part number designation with original Mitsubishi Electric designs, reflecting the continuity of product lines following the corporate acquisition and technology transfer.

Replacement Considerations

Direct replacements include other manufacturers offering equivalent 600V/300A half-bridge IGBT modules. Cross-reference thermal impedance curves and pinout configurations carefully when substituting with parts from different vendors to ensure mechanical and electrical compatibility.
