Product Detailed Parameters
- Description：IGBT MOD 1200V 300A 1890W
- Series：IGBTMOD™
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：-
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：3V @ 15V, 300A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：300 A
- Power - Max：1890 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：47 nF @ 10 V
Download product information
Overview

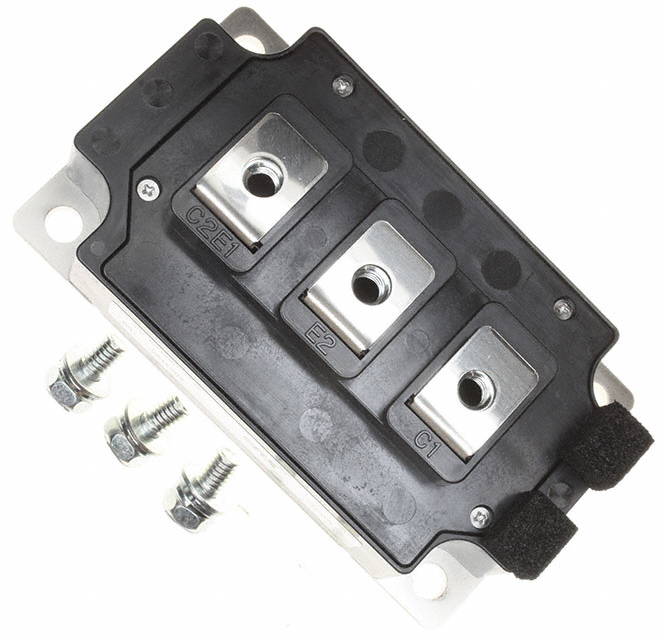

The CM300DY-24A is a dual IGBT module manufactured by Powerex Inc., designed for high-power switching applications. It features two N-channel Insulated Gate Bipolar Transistors in a half-bridge configuration, each paired with a reverse-connected super-fast recovery free-wheel diode. The device has a maximum collector-emitter voltage of 1200 V and a continuous collector current rating of 300 A. It utilizes an isolated baseplate for thermal management and system assembly.
Feature Summary
- Half-bridge configuration with integrated super-fast recovery free-wheel diodes
- Isolated baseplate design simplifies heat sinking and system assembly
- Low drive power requirements and low saturation voltage
Applications
- AC motor control systems
- Uninterruptible Power Supplies (UPS)
- Battery powered supplies
Procurement Notes
Verify the manufacturer designation, as this component is associated with both Powerex and Mitsubishi Electric Semiconductors. Confirm the specific datasheet version to ensure accurate electrical parameters. Check for RoHS compliance status if required for your application. Ensure the package type matches your thermal interface requirements.
Selection Notes
Select this module for applications requiring a 1200 V blocking voltage and up to 300 A continuous current. The half-bridge topology is suitable for inverters and choppers. Consider the thermal resistance of the isolated baseplate when designing the cooling solution. Verify gate drive compatibility with the specified drive power characteristics.
Part Context
This component belongs to the IGBTMOD A-series line from Powerex. These modules are engineered for robust performance in industrial power electronics. The series typically includes variants with different current ratings while maintaining similar packaging and electrical characteristics for design flexibility.
Replacement Considerations
Cross-reference with other 300 A / 1200 V half-bridge IGBT modules from Powerex or Mitsubishi Electric. Verify pinout compatibility and thermal specifications before substituting. Ensure the replacement part supports the same switching frequency and diode recovery characteristics.
