CM400HU-24F

Overview

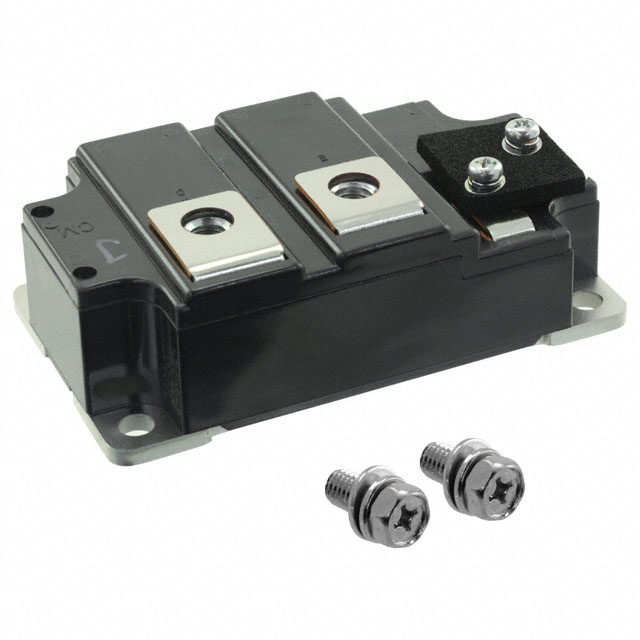

The CM400HU-24F is a single IGBT module manufactured by Powerex Inc. It features a trench gate technology design intended for high-power switching applications. The component is rated for a collector-emitter voltage of 1200 V and a continuous collector current of 400 A. It has a maximum power dissipation capacity of 1600 W. The module utilizes a chassis mount configuration for thermal management. It is lead-free and RoHS compliant, ensuring adherence to environmental standards for electronic components.

Feature Summary

• Single IGBT transistor configuration with trench gate technology
• Designed for high-power switching applications
• Chassis mount package for efficient thermal dissipation

Applications

• Industrial motor drives
• Power conversion systems
• High-power inverter circuits

Procurement Notes

Verify the specific datasheet version from authorized distributors or the manufacturer's official channels. Confirm that the component matches the exact part number CM400HU-24F to ensure correct electrical ratings and pinout compatibility. Check for RoHS compliance documentation if required by project specifications.

Selection Notes

Select this module for applications requiring high current handling at 1200 V blocking voltage. Ensure the cooling system can manage the 1600 W power dissipation. Compare against other single IGBT modules if different configurations like dual units are needed. Verify mechanical mounting requirements match the chassis mount design.

Part Context

This component belongs to the Powerex IGBTMOD series, which provides robust solutions for power electronics. The CM400HU-24F represents a single unit within this lineup, offering a balance of voltage rating and current capacity suitable for medium to high-power industrial uses.

Replacement Considerations

The CM400DU-12F is a related single IGBT module from the same manufacturer family. Consider cross-referencing technical specifications when evaluating substitutes.
