Product Detailed Parameters
- Description：IGBT MOD 600V 600A 1130W
- Series：IGBTMOD™
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：-
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 600A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：600 A
- Power - Max：1130 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：90 nF @ 10 V
Download product information
Overview

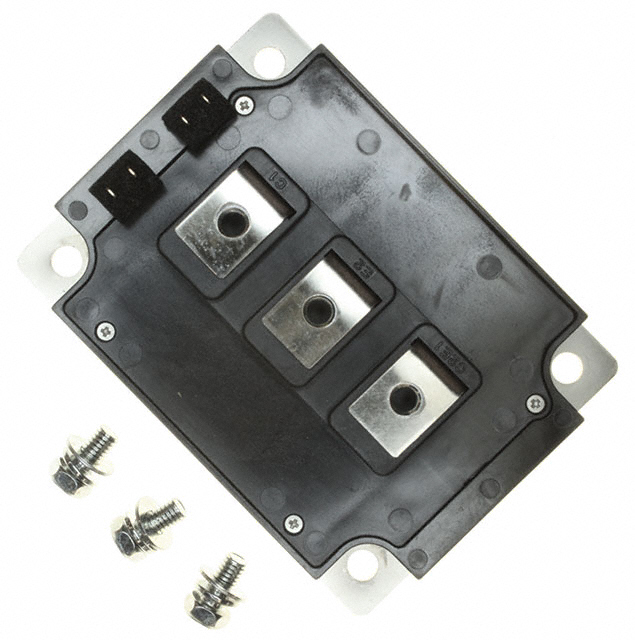

The CM600DY-12NF is a dual IGBT module from the NF-Series, manufactured by Powerex. It features two IGBT transistors in a half-bridge configuration, each paired with a reverse-connected super-fast recovery free-wheel diode. The device is rated for 600 Volts and 300 Amperes. All components and interconnects are isolated from the heat-sinking baseplate to simplify system assembly and thermal management.
Feature Summary
- Low drive power requirements
- Low saturation voltage (VCE(sat))
- Discrete super-fast recovery free-wheel diodes
- Isolated baseplate for easy heat sinking
Applications
- AC motor control
- Uninterruptible Power Supplies (UPS)
- Battery powered supplies
Procurement Notes
Verify the manufacturer designation on the component marking, as similar part numbers exist across different vendors including Mitsubishi Electric Semiconductors and Inchange Semiconductor. Confirm that the specific unit is sourced from Powerex Inc. to ensure compliance with the NF-Series specifications and performance characteristics defined in the official datasheet.
Selection Notes
Select this module for high-power switching applications requiring a robust half-bridge topology. The isolated baseplate design facilitates efficient thermal management and simplified mechanical integration into systems. Ensure the gate drive circuitry supports the low drive power characteristics of the NF-Series IGBTs for optimal efficiency.
Part Context
This component belongs to the Powerex IGBTMOD™ NF-Series line, designed specifically for demanding switching applications. The series emphasizes ease of assembly through isolated baseplates and improved thermal handling. The CM600DY variant represents the 600A current rating within the 600V voltage class of the DY (dual) package family.
Replacement Considerations
Cross-reference with other manufacturers offering equivalent 600V/300A half-bridge modules if sourcing constraints exist. Verify pinout compatibility and thermal interface dimensions before substituting with parts from vendors such as Mitsubishi or Inchange Semiconductor.
