Product Detailed Parameters

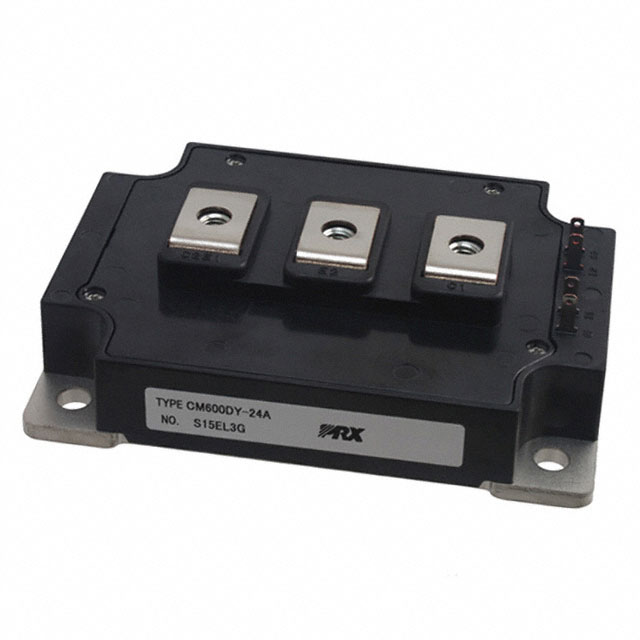

- Description：IGBT MOD 1200V 600A 3670W
- Series：IGBTMOD™
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：-
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：3V @ 15V, 600A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：600 A
- Power - Max：3670 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：94 nF @ 10 V
Download product information
Overview
The CM600DY-24A is a dual N-channel IGBT module manufactured by Powerex Inc. It features a half-bridge configuration with two integrated elements and built-in super-fast recovery free-wheel diodes. The device supports a maximum collector current of 600 A and a collector-emitter voltage rating of 1200 V. It utilizes a flange mount package with an isolated baseplate for thermal management. The module operates at a maximum junction temperature of 150 °C and contains seven terminals. It is RoHS compliant and designed for high-power switching applications.
Feature Summary
- Half-bridge configuration with discrete super-fast recovery free-wheel diodes
- Isolated baseplate design for simplified system assembly and heat sinking
- Low drive power requirements and low saturation voltage
Applications
- AC motor control systems
- Uninterruptible power supplies (UPS)
- Battery powered supplies
Procurement Notes
Verify the specific manufacturer source, as datasheets may list both Powerex and Mitsubishi Electric Semiconductors for this part number. Confirm that the component meets all required environmental standards and packaging specifications before integration into final designs.
Selection Notes
Select this module for applications requiring high current handling up to 600 A and voltage ratings of 1200 V. Ensure the cooling solution accommodates the flange mount form factor and that the gate drive circuitry matches the low drive power characteristics of the IGBT structure.
Part Context
This component belongs to the IGBTMOD A-series module family from Powerex. These modules are engineered specifically for robust switching performance in industrial power electronics. The series emphasizes reliability and ease of thermal management through its standardized mechanical footprint.
Replacement Considerations
Cross-reference with other 600 A / 1200 V half-bridge IGBT modules from manufacturers such as Mitsubishi Electric or Infineon. Verify pin compatibility and thermal resistance values when substituting to ensure equivalent performance in the target application.
