CM600HU-12F

$117.75

Description：IGBT MOD 600V 600A 1420W
Series：IGBTMOD™

SKU:ec1a4cad5f5d Category: IGBT Modules Brand: Powerex Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 600V 600A 1420W
Series：IGBTMOD™
Mfr：Powerex Inc.
Package：Bulk
IGBT Type：Trench
Configuration：Single
Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 600A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：600 A
Power - Max：1420 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：160 nF @ 10 V

Download product information

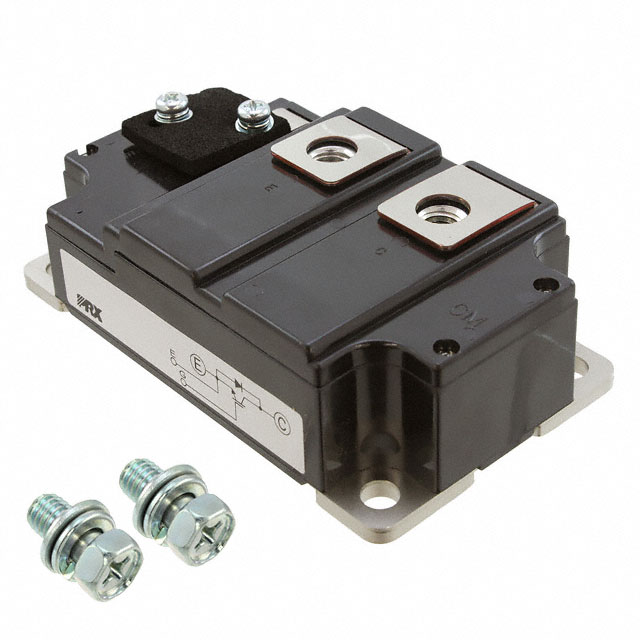

CM600HU-12F

Overview

The CM600HU-12F is a single-unit IGBT module from Mitsubishi Electric, part of the fourth-generation F-series. It features a 600V collector-emitter voltage rating and a 600A maximum collector current. The component utilizes an insulated flange mount package with a rectangular form factor and 21 terminals positioned on the upper side. Designed for motor control applications, it integrates complex switching elements within a robust power module structure suitable for high-power industrial environments.

Feature Summary

High-current capability with 600A collector current rating
Insulated flange mount construction for thermal management
Complex configuration integrating multiple switching elements
Designed specifically for motor control applications

Applications

Industrial motor drives
Three-phase inverter circuits
Medium to high-power motor control systems

Part Context

This component belongs to Mitsubishi's fourth-generation F-series IGBT modules, which succeeded the earlier H and U series. The HU designation indicates a single-unit configuration with 600V rating. This generation offers improved performance characteristics compared to previous iterations while maintaining compatibility with standard mounting interfaces used in industrial power electronics.

Replacement Considerations

Direct replacements include other Mitsubishi F-series modules such as CM400HU-12F or CM600HU-24F for higher voltage requirements. Cross-manufacturer equivalents should be verified against electrical ratings and pin configurations. Powerex PM series modules may serve as functional alternatives but require thorough technical validation.
